Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging AMMO PACKAGE
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 299V
Minimum Breakdown Voltage 332V
Max Clamping Voltage 618V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Capacitance @ Frequency 215pF @ 1MHz
Mounting Through Hole
Case / Package DO-201
Win Source Part Number 084177-1.5KE350CA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian 1.5KE350CA CAD Model

Description

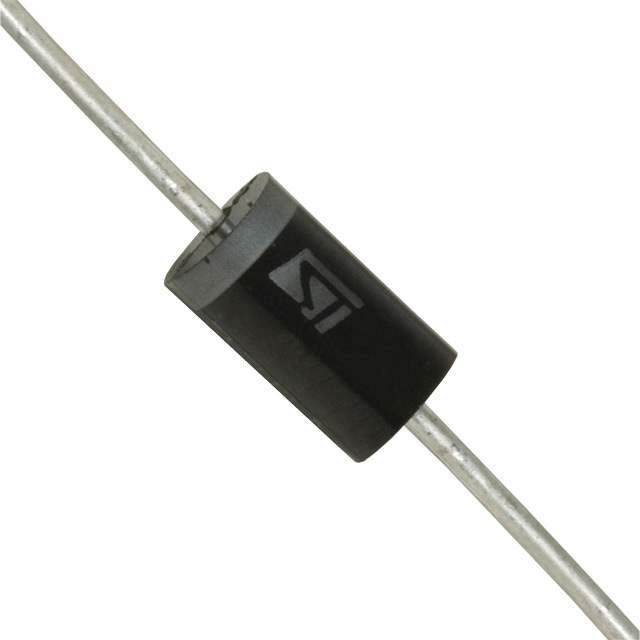

The 1.5KE350CA is a high-quality transient voltage suppressor (TVS) diode from STMicroelectronics, a leading manufacturer in the semiconductor industry. This TVS diode is designed to protect sensitive electronic equipment from voltage spikes and surges, providing reliable and robust protection in a variety of applications.

Key Features

  • Transient Protection: The 1.5KE350CA is capable of clamping and dissipating the energy of voltage transients, ensuring the protection of sensitive circuit components.
  • High Surge Capability: With its ability to handle high surge currents, this diode is suitable for use in environments where surge events are common.
  • Bi-directional Protection: As a bidirectional TVS, the 1.5KE350CA provides protection for both positive and negative voltage spikes, making it a versatile choice for various circuit configurations.
  • High Power Rating: The device has a 1500W peak pulse power capability with a 10/1000μs waveform, which is typical for transient voltage suppression diodes.
  • ISO 9001 and ISO 14001 Certified: Manufactured by STMicroelectronics, this product meets the high-quality standards and environmental management systems as per the mentioned certifications.

Applications

The 1.5KE350CA TVS diode is ideal for protecting a wide range of electronic devices, including:

  • Industrial systems
  • Consumer electronics
  • Telecommunication devices
  • Power supply units
  • Automotive systems
  • Computer applications

Specifications

Parameter Value Reverse Standoff Voltage 350V Breakdown Voltage Min. 389V, Max. 431V Peak Pulse Power Dissipation 1500W Clamping Voltage 482V Operating Temperature Range -55°C to +175°C

With its robust design and reliable performance, the STMicroelectronics 1.5KE350CA is an excellent choice for protecting electrical and electronic equipment from voltage transients and surges.
