Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 6g
Sensitivity (LSB/g) 1024 (±2g) ~ 340 (±6g)
Bandwidth 10Hz ~ 640Hz
Output Type I2C, SPI
Operating Supply Voltage 3 V ~ 3.6 V
Features Adjustable Bandwidth, Selectable Scale
Operating Temperature Range -40°C ~ 105°C (TA)
Mounting SMD
Package 28-QFN Exposed Pad
Manufacturer Package 28-QFPN (7x7)
Win Source Part Number 1143198-AIS326DQTR
Manufacturer Homepage www.st.com
Family Name AIS326DQ
Introduction Date March 08, 2005
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AIS326DQTR CAD Model

Description

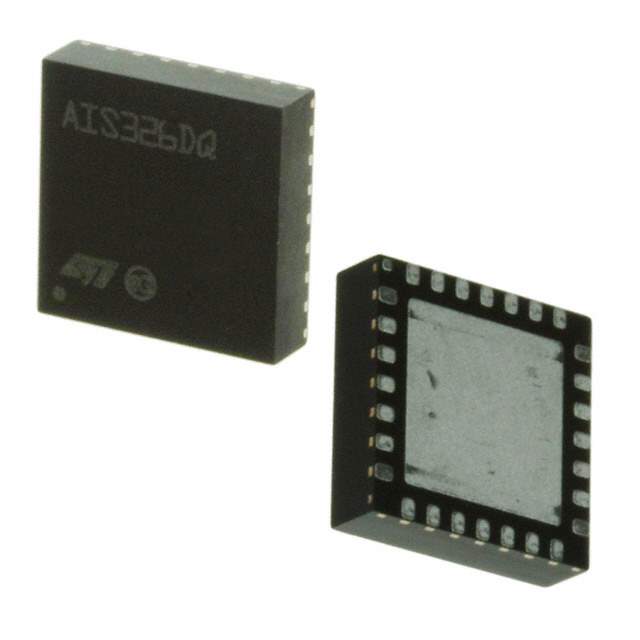

STMicroelectronics AIS326DQTR 3-Axis Accelerometer

The AIS326DQTR from STMicroelectronics is a state-of-the-art 3-axis accelerometer designed to deliver high performance in a wide range of applications. This compact sensor is part of the extensive accelerometer product line from STMicroelectronics, which is renowned for its reliability and precision in motion sensing.

The AIS326DQTR is built on advanced MEMS (Micro-Electro-Mechanical Systems) technology, which allows it to detect acceleration due to motion or gravity with high accuracy. It features a selectable full-scale range of ±6g, ±12g, or ±24g, making it versatile for various use cases from automotive applications to industrial systems.

One of the key benefits of the AIS326DQTR is its robust design, which is engineered to withstand high levels of shock and vibration. This durability makes it an ideal choice for harsh environments where reliability is crucial. Additionally, the sensor includes a self-test capability that ensures proper functioning throughout its operational life.

The AIS326DQTR operates over a wide temperature range, ensuring consistent performance even under extreme conditions. It also offers low power consumption, which is critical for battery-powered devices, and it supports I2C/SPI digital output interfaces for easy integration into system designs.

With its small footprint, the AIS326DQTR comes in a compact QFN (Quad Flat No-leads) package, which is suitable for space-constrained applications. Its 16-bit data output and programmable interrupt generator for motion detection and free-fall events enable designers to implement sophisticated motion-based features in their products.

Whether it's being used in vehicle navigation systems, robotics, gaming devices, or personal electronics, the AIS326DQTR provides the precision and durability that designers need to create innovative and responsive products. Its combination of advanced features and robust design makes it a top choice for any application requiring reliable 3-axis acceleration sensing.

For more information and to view detailed technical specifications, visit the STMicroelectronics website or contact their support team for assistance in integrating the AIS326DQTR into your next project.
