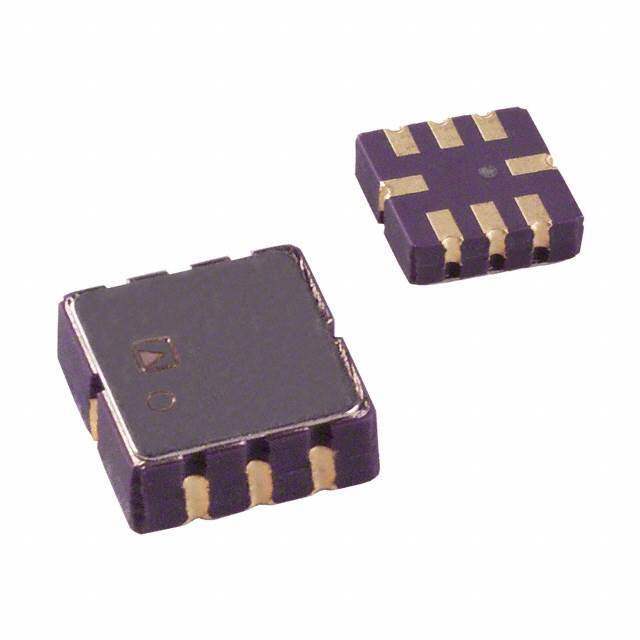

ADXL210AE-REEL Accelerometer by Analog Devices Inc.

The ADXL210AE-REEL is a precision, low-power, complete dual-axis accelerometer with signal-conditioned voltage outputs, all on a single monolithic IC. Manufactured by Analog Devices Inc., this accelerometer measures acceleration with a full-scale range of ±10 g and is part of their high-performance analog technology line.

Key Features:

• Measurement Range: The device can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity) with a full-scale range of ±10 g.
• Output: It provides a 4-pole low pass filter and outputs a voltage that is proportional to the acceleration. The filtered output voltage is ratiometric to the supply voltage.
• Power Consumption: Designed for power-sensitive applications, the ADXL210AE-REEL operates on a supply voltage range of 3.0 V to 5.25 V and offers low power consumption.
• Frequency Response: The accelerometer features a fixed 50 Hz bandwidth for both axes, ensuring consistent performance for applications requiring specific frequency filtering.
• Duty Cycle Output: An additional duty cycle modulated output is available which has the same full-scale range and bandwidth.

Applications:

The ADXL210AE-REEL is suitable for a wide array of applications, including but not limited to:

• Vehicle Dynamic Controls
• Electronic Stability Programs
• Platform Stabilization/Control
• Machine and Engine Vibration Monitoring
• Tilt-Sensing Applications
• Robotics and Industrial Controls

Reliability and Packaging:

Supplied in a convenient surface-mount package, the ADXL210AE-REEL is available in a tape and reel format, making it ideal for automated assembly processes. Analog Devices Inc. ensures high-quality and reliability, and the device is designed for a wide temperature range, making it a robust choice for challenging environments.

Conclusion:

With its combination of features, the ADXL210AE-REEL from Analog Devices Inc. stands out as a versatile and efficient solution for a multitude of motion sensing applications. Its ease of integration, coupled with Analog Devices' reputation for precision engineering, makes it a go-to choice for engineers and designers seeking to enhance the performance and reliability of their systems.
