Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr STMicroelectronics
Package Tape & Reel
Product Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 4098 (±2g) ~ 512 (±16g)
Bandwidth 0.8Hz ~ 800Hz
Output Type I2C, SPI
Voltage - Supply 1.62V ~ 3.6V
Features Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 12-WFLGA
Supplier Device Package 12-LGA (2x2)
Base Product Number LIS2DTW12
Standard Package 10,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852134-LIS2DTW12TR
Ultra Librarian 3D Model Ultra Librarian LIS2DTW12TR CAD Model

Description

STMicroelectronics LIS2DTW12TR Ultra-Low-Power High-Performance 3-Axis Accelerometer

The LIS2DTW12TR from STMicroelectronics is a state-of-the-art, ultra-low-power high-performance three-axis "femto" accelerometer that is specifically designed for a wide range of applications, including mobile devices, IoT, and wearable technology. This accelerometer is part of ST's MEMS sensors portfolio and is designed to provide precise motion and tilt sensing in compact form factors.

The LIS2DTW12TR features a high-resolution output of up to 14 bits and supports selectable full scales of ±2g/±4g/±8g/±16g. This allows the device to capture both high precision movements and high dynamic accelerations without losing accuracy. The accelerometer's advanced embedded functions include a FIFO buffer, tap and double-tap recognition, free-fall detection, and 6D orientation detection, making it a versatile choice for advanced motion detection applications.

With its ultra-low power consumption, the LIS2DTW12TR is optimized for battery-powered applications. It operates within a supply voltage range of 1.62V to 3.6V, which makes it suitable for systems where power efficiency is critical. The device also includes several power-saving features such as an automatic power-down mode and a low-power mode for both the accelerometer and the temperature sensor, which further extends battery life.

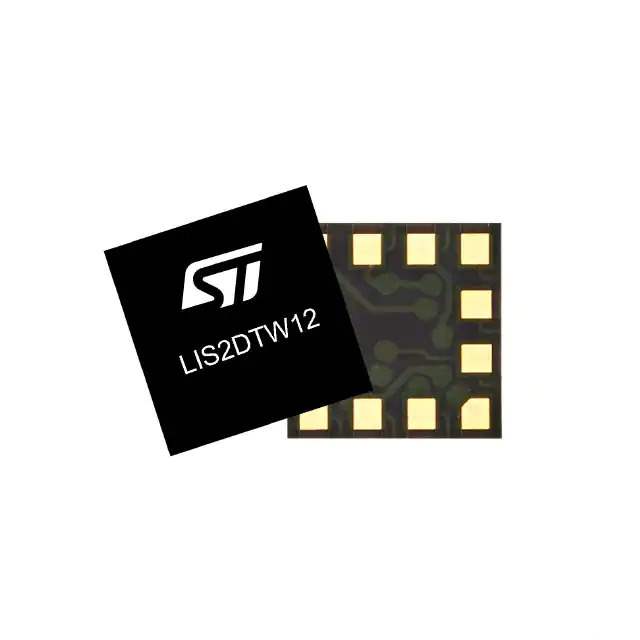

The LIS2DTW12TR is designed for easy integration into systems with its small footprint and an industry-standard footprint. It comes in a compact LGA-12 package (2x2x0.7 mm), which is ideal for space-constrained designs. The device is also engineered for robustness, with high shock survivability up to 4000g.

For developers and engineers, STMicroelectronics provides extensive support, including evaluation boards and a comprehensive development ecosystem. This ensures that integrating the LIS2DTW12TR into your project is as smooth and efficient as possible, speeding up the development process and reducing time-to-market.

In summary, the LIS2DTW12TR is not just an accelerometer; it's a versatile and powerful solution for motion sensing that combines performance, power efficiency, and ease of use in a miniature package, making it an ideal choice for the next generation of smart, connected devices.
