Products specifications

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr STMicroelectronics
Series BlueNRG
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Frequency 2.4GHz ~ 2.4835GHz
Power - Output 5dBm
Sensitivity -85dBm
Serial Interfaces ADC, GPIO, I²C, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part BlueNRG-2
Memory Size 256kB Flash, 24kB RAM
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 7.55mA
Current - Transmitting 7.01mA ~ 14.78mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 23-SMD Module
Base Product Number BLUENRG
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1349444-BLUENRG-M2SA
Ultra Librarian 3D Model Ultra Librarian BLUENRG-M2SA CAD Model

Description

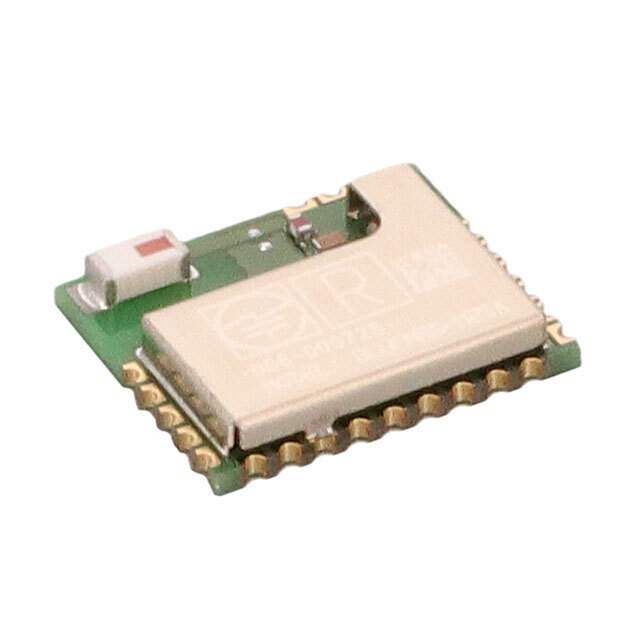

The BLUENRG-M2SA from STMicroelectronics is a cutting-edge Bluetooth Low Energy (BLE) wireless system-on-chip that is designed to provide a perfect solution for smart connectivity applications. This powerful and highly integrated device is part of the BlueNRG family, renowned for its low power consumption and outstanding performance in wireless communication.

Key Features

  • Bluetooth 5.0 Compliant: The BLUENRG-M2SA supports the latest Bluetooth 5.0 standard, offering enhanced features such as higher data rates, extended range, and improved privacy and security.
  • Ultra-low Power Consumption: It is optimized for low power operations, which makes it ideal for battery-powered applications like wearables, fitness devices, and smart sensors.
  • Integrated ARM Cortex-M0 Core: Equipped with a powerful ARM Cortex-M0 core that runs at up to 32 MHz, it provides the computational power required for complex algorithms and application processing.
  • Highly Integrated System-on-Chip: The SoC includes a 2.4 GHz radio, a 32-bit microcontroller, and ample on-chip memory, reducing the need for external components and simplifying design.
  • Advanced Security: With features such as AES-128 encryption, the BLUENRG-M2SA ensures secure communication, protecting data from unauthorized access.

Applications

The BLUENRG-M2SA is versatile and can be used in a variety of applications. Its robust feature set makes it suitable for:

  • Internet of Things (IoT) devices
  • Smart home and building automation
  • Wearable devices and personal fitness trackers
  • Healthcare and medical devices
  • Industrial monitoring and control systems

With its small form factor, the BLUENRG-M2SA is also ideal for space-constrained applications. Developers will appreciate the comprehensive development ecosystem provided by STMicroelectronics, including software development kits (SDKs) and hardware development tools, which facilitate rapid design and deployment of Bluetooth-enabled products.

Whether you're developing the next generation of smart gadgets or looking to add wireless capabilities to existing products, the BLUENRG-M2SA offers a balance of power efficiency, performance, and security to meet the demands of modern wireless applications.
