Products specifications

Categories RF/IF and RFID
Manufacturer STMicroelectronics
Packaging Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation GFSK
Frequency 2.4GHz
Data Rate (Maximum) 1Mbps
Power - Output 8dBm
Sensitivity -88dBm
Memory Size 64kB Flash, 12kB RAM
Serial Interfaces SPI
Supply Voltage (V) 1.7V ~ 3.6V
Receiving Current 7.3mA ~ 14.5mA
Transmitting Current 5.8mA ~ 28.8mA
Temperature Range - Operating -40°C ~ 85°C

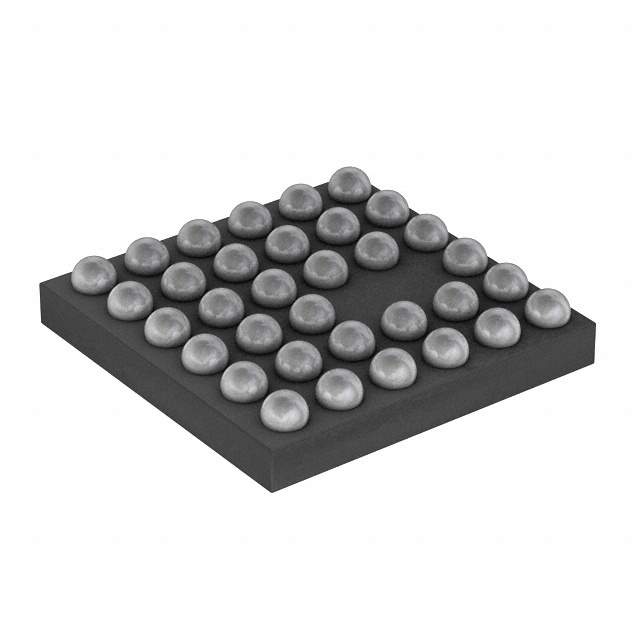

Manufacturer Package 34-XFBGA, WLCSP
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758971-BLUENRG-MSCSP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BLUENRG-MSCSP CAD Model

Description

STMicroelectronics BLUENRG-MSCSP: A Cutting-Edge Bluetooth SoC

The BLUENRG-MSCSP from STMicroelectronics is a state-of-the-art System-on-Chip (SoC) designed for the most demanding Bluetooth applications. This powerful and versatile chip is the perfect solution for developers looking to integrate Bluetooth Low Energy (BLE) connectivity into their products. With its remarkable energy efficiency and robust wireless performance, the BLUENRG-MSCSP is ideal for a wide range of applications, including wearable devices, smart home automation, and industrial IoT devices.

Key Features:

  • Bluetooth 5.0 Compliant: The BLUENRG-MSCSP supports the latest Bluetooth 5.0 standard, offering improved data rates, longer range, and enhanced security features.
  • Ultra-Low Power Consumption: Designed with energy efficiency in mind, this SoC enables extended battery life for portable and wearable applications where power conservation is critical.
  • Flexible Memory Configuration: It includes both programmable Flash memory and RAM, allowing developers to tailor the memory layout to their specific application needs.
  • Robust Security: Equipped with state-of-the-art security features, the BLUENRG-MSCSP ensures secure communication and protection against threats, making it suitable for sensitive applications.
  • Integrated ARM Cortex-M0 Core: The inclusion of a powerful ARM Cortex-M0 core provides the computational power needed for complex algorithms and application processing.
  • Advanced Peripherals: A wide array of peripherals including SPI, I2C, UART, ADC, and programmable I/Os, provides excellent flexibility in system design.

Applications:

The BLUENRG-MSCSP is not only limited to traditional Bluetooth applications but also excels in emerging markets requiring reliable and secure wireless connectivity. Its versatility makes it an excellent choice for:

  • Wearable Health and Fitness Monitors
  • Smart Watches and Activity Trackers
  • Wireless Sensors and Automation Systems
  • Smart Home and Security Devices
  • Proximity Detection and Asset Tracking

With its integration of powerful features and compliance with the latest Bluetooth standards, the BLUENRG-MSCSP from STMicroelectronics is the go-to SoC for developers aiming to create innovative BLE-enabled products. Its combination of low power consumption, robust security, and extensive peripheral support makes it an all-in-one solution for a multitude of wireless applications.
