Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 1.3V
Current - Gate Trigger (Igt) (Maximum) 80mA
Voltage - On State (Vtm) (Maximum) 1.9V
Current - On State (It (AV)) (Maximum) 32A
Current - On State (It (RMS)) (Maximum) 50A
Current - Hold (Ih) (Maximum) 150mA
Current - Off State (Maximum) 10μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 580A, 610A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TOP-3
Manufacturer Package TOP3
Win Source Part Number 770614-BTW69-600RG
Popularity Medium
Supply and Demand Status Limited
Family Name BTW69-600
Introduction Date August 18, 1995
ECCN EAR99
Country of Origin Philippines
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BTW69-600RG CAD Model

Description

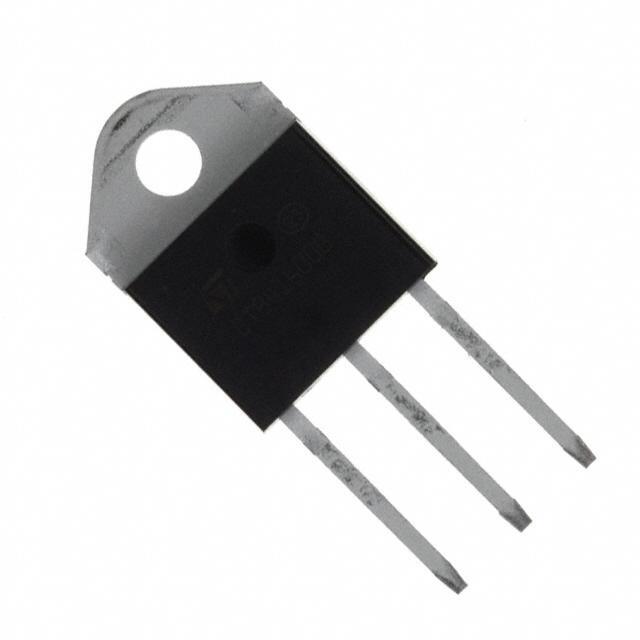

Product Overview: BTW69-600RG from STMicroelectronics

The BTW69-600RG is a robust and reliable silicon controlled rectifier (SCR) designed and manufactured by STMicroelectronics, a global semiconductor leader. This SCR is a high-power electronic component that is widely used in applications requiring efficient and controlled rectification of high voltages and currents. It is particularly suitable for motor control, industrial power supplies, and other power management tasks.

The BTW69-600RG is designed to handle a maximum repetitive peak off-state voltage (V<sub>DRM) of 600V, with a peak gate power of 5W and a maximum average on-state current (I<sub>T(AV)) of 50A at a case temperature of 25°C. This makes it an excellent choice for heavy-duty applications that demand high surge current capabilities.

One of the key features of the BTW69-600RG is its high surge current capability, with a non-repetitive surge peak on-state current (I<sub>TSM) of up to 500A. This ensures the device can handle high overload conditions without failure. Additionally, it boasts a low on-state voltage drop (V<sub>T) which enhances the overall efficiency of the system in which it is used.

The device comes in a rugged package, the RD91, which is designed to offer high thermal cycling performance and ease of installation. The package is also insulated, with a maximum operating junction temperature range of -40°C to +125°C, ensuring stable performance across a wide range of environmental conditions.

The BTW69-600RG is also RoHS compliant and adheres to the European Union standards for restriction of hazardous substances, making it an environmentally friendly choice for electronic designs. Its high reliability and performance characteristics are a testament to STMicroelectronics' commitment to quality and innovation in semiconductor technology.

Overall, the BTW69-600RG SCR is a powerful and efficient solution for designers looking to implement high-performance controlled rectification in their power management systems.
