Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 19.2V (Typ)
Peak Pulse Current(Ippm) 1.7A (8/20μA)
Power Dissipation - Pd 20W
Applications General Purpose
Capacitance @ Frequency 7pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0201
Win Source Part Number 1037149-ESDAVLC5-1BF4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDAVLC5-1BF4 CAD Model

Description

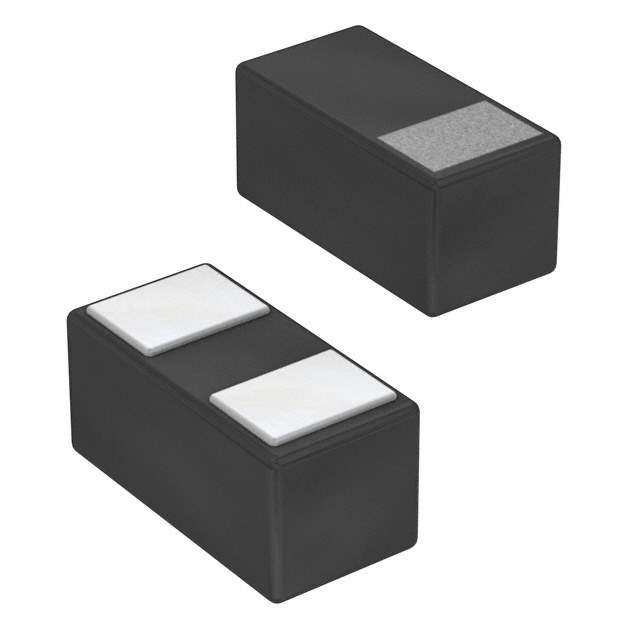

STMicroelectronics ESDAVLC5-1BF4 Transient Voltage Suppressor

The ESDAVLC5-1BF4 from STMicroelectronics is a state-of-the-art transient voltage suppressor (TVS) designed to protect sensitive electronic circuits from electrostatic discharges (ESD). This component is particularly suited for space-constrained applications, thanks to its ultra-compact SOD-882 package, also known as CLP0603. It offers a perfect solution for safeguarding high-speed data lines and other vulnerable circuits against the detrimental effects of ESD.

With its bidirectional transient voltage suppression capability, the ESDAVLC5-1BF4 provides robust protection for one data or power line. The device is characterized by a breakdown voltage of 6.1V typical, with a maximum clamping voltage of 15V at 5A. This ensures that any transient voltage spikes are quickly clamped to a safe level, preventing damage to the protected component.

The ESDAVLC5-1BF4 boasts an impressive ESD protection level exceeding the IEC 61000-4-2 standard, withstanding ESD strikes up to 30 kV (air discharge) and 30 kV (contact discharge), thus offering one of the highest levels of protection available in the industry. This makes it an ideal choice for safeguarding high-end and sensitive electronic devices, including smartphones, tablets, and other portable electronics that are frequently exposed to the risk of ESD events.

In addition to its ESD protection features, this TVS diode also offers low leakage current and low capacitance, which minimizes impact on the signal integrity of high-speed data lines. This ensures that the ESDAVLC5-1BF4 does not interfere with the normal operation of the protected circuit while providing effective transient voltage suppression.

For designers and engineers looking for a reliable and efficient way to enhance the durability and longevity of their electronic products, the ESDAVLC5-1BF4 from STMicroelectronics is an excellent choice. Its combination of powerful protection, small form factor, and minimal signal distortion makes it a versatile and indispensable component in the fight against electrostatic damage.
