Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Series VIPower™
Package Bulk
Type Power Management
Function High Side Driver (Internal FET)
Utilized IC / Part VN5016AJ
Primary Attributes 1-Channel (Single)
Supplied Contents Board(s)
Base Product Number VN5016
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1341622-EV-VN5016AJ
Ultra Librarian 3D Model Ultra Librarian EV-VN5016AJ CAD Model

Description

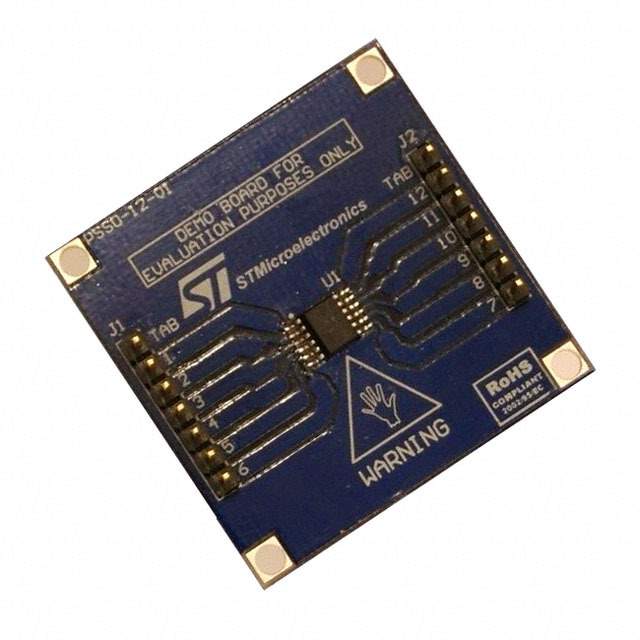

The EV-VN5016AJ from STMicroelectronics is a robust evaluation board designed for the VN5016AJ high-side driver, an integral component for automotive and industrial applications. This evaluation board allows designers and engineers to thoroughly test and assess the capabilities of the VN5016AJ in a controlled environment before integrating it into their final designs.

The VN5016AJ is a single-channel high-side driver manufactured with ST's VIPower technology. It is designed to drive resistive, inductive, and capacitive loads, offering a wide range of features including thermal shutdown, overvoltage clamp, load current limitation, and diagnostic feedback. With an operating voltage range of 5.5V to 36V, it is suitable for 12V, 24V systems and can handle load currents up to 16A.

The EV-VN5016AJ evaluation board showcases the VN5016AJ's capabilities, including its current sense accuracy, off-state supply current, and on-state resistance. It also facilitates the exploration of the device's diagnostic functions, such as open load detection and thermal shutdown status, which are critical for ensuring reliability and safety in real-world applications.

The board comes with all necessary circuitry to provide a plug-and-play experience. It includes power supply connectors, load connectors, and signal interfaces, making it easy to connect to a microcontroller or other control unit for comprehensive testing. The layout of the board is optimized for heat dissipation, ensuring that the VN5016AJ operates within its temperature specifications during evaluation.

Engineers looking to develop applications in the automotive sector, such as body control modules, automotive lighting, and engine management systems, will find the EV-VN5016AJ an invaluable tool. Similarly, in the industrial sector, this evaluation board is ideal for prototyping applications like factory automation, process control, and robotics.

In summary, the EV-VN5016AJ evaluation board is a testament to STMicroelectronics' commitment to providing high-quality tools for product development, ensuring that engineers can bring reliable and efficient designs to the market with confidence.
