EVAL6206Q Product Overview

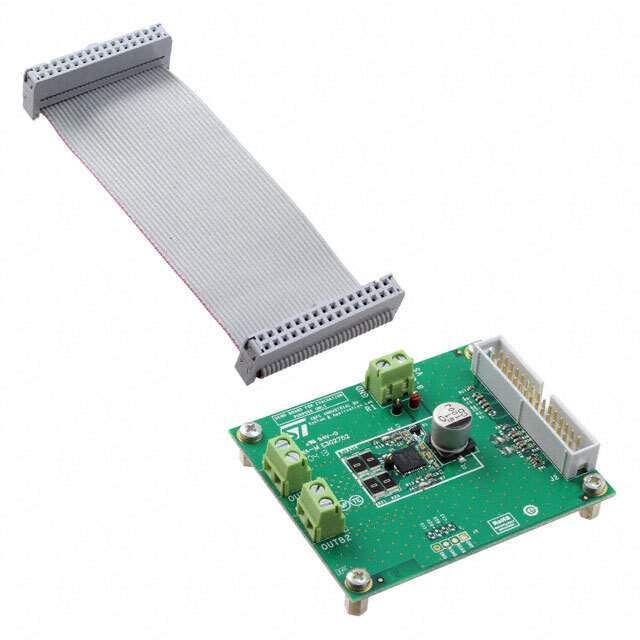

The EVAL6206Q from STMicroelectronics is a high-performance evaluation board designed for motor control applications. It is specifically tailored for driving stepper motors, providing designers with a flexible and powerful platform to develop and test their motor control solutions. The EVAL6206Q is built around the L6206Q, a dual full-bridge driver integrated circuit that is capable of driving two-phase bipolar stepper motors with microstepping support.

Key Features


• Integrated dual full-bridge driver capable of delivering up to 1.5 A per phase.

• Operating voltage range from 8 V to 52 V, making it suitable for a wide array of stepper motors.

• Support for microstepping operation, allowing for smoother and more precise motor control.

• Overcurrent, short-circuit, under-voltage, and thermal protection features to ensure safe operation under various conditions.

• Cross-conduction protection to prevent accidental damage to the motor or driver.

• Non-dissipative overcurrent detection and protection.

• User-friendly interface with dedicated connectors for motor, power supply, and control signals.

• Compatible with a broad range of microcontrollers for versatile control options.


Applications

The EVAL6206Q is ideal for a variety of applications where precise and reliable motor control is required. These include, but are not limited to:


• 3D printers

• CNC machines

• Robotics

• Automated guided vehicles (AGVs)

• Office automation equipment

• Medical equipment


Design and Development Support

STMicroelectronics provides comprehensive support for the EVAL6206Q, including detailed documentation, reference designs, and software tools to assist in the development process. This support ensures that engineers can quickly integrate the EVAL6206Q into their designs and bring their motor control applications to market with confidence.
