Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 30mA
Outputs and Type 6, Non-Isolated
Voltage - Output 36V
Features Dimmable, Extra 5V Output
Voltage - Input 4.5V ~ 36V
Supplied Contents Board(s)
Utilized IC / Part LED7706
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1341642-EVALED7706
Ultra Librarian 3D Model Ultra Librarian EVALED7706 CAD Model

Description

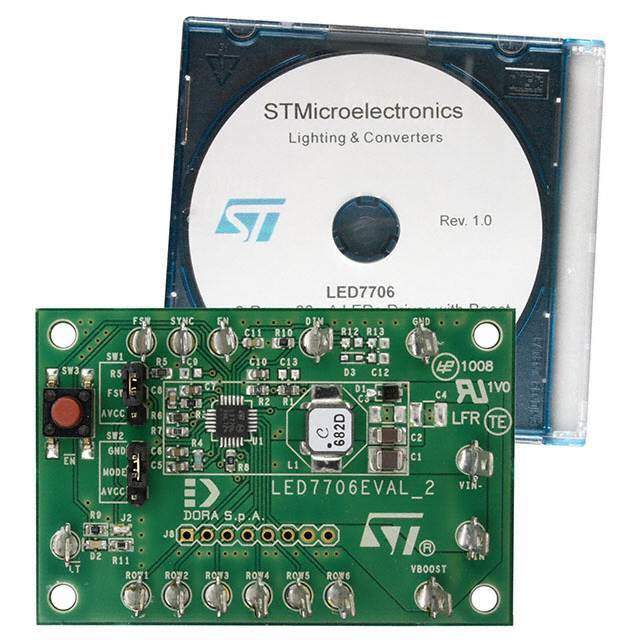

The EVALED7706 is a state-of-the-art evaluation board designed by STMicroelectronics specifically tailored for engineers and developers who are looking to explore the features and capabilities of the LED7706 LED driver IC. This evaluation platform serves as a critical tool for the rapid prototyping and testing of LED driving solutions for backlighting LCD panels.

The LED7706 IC is a highly flexible, six-channel LED driver which enables precise and efficient control of LED arrays. It is particularly well-suited for applications in LCD backlighting that require smooth dimming and uniform illumination, such as those found in automotive dashboards, industrial displays, and consumer electronics like smartphones and televisions.

The EVALED7706 board comes equipped with a range of features that showcase the LED7706's capabilities:

  • Multiple Output Channels: Six individually controllable LED output channels for managing multi-string LED arrays.
  • Wide Input Voltage Range: Designed to operate across a broad input voltage range, catering to various power supply specifications.
  • High Efficiency: The LED7706 IC employs a charge pump power supply, optimizing efficiency and reducing the need for external components.
  • Adjustable Dimming: Includes PWM dimming control for each channel, allowing for precise brightness adjustments and power savings.
  • Thermal Protection: Built-in thermal shutdown protection to prevent overheating and ensure the longevity of the board and LED arrays.
  • Easy Connectivity: The evaluation board features convenient connectors and test points for simple integration and measurement.

For developers eager to jump-start their design process, the EVALED7706 provides an invaluable platform to experiment with and understand the LED7706 IC's functionality. The board is supported by comprehensive documentation, including schematics, application notes, and datasheets, all available through the STMicroelectronics website. This ensures that users can maximize the potential of the evaluation board and accelerate the development of their LED driving solutions.

Whether you are developing cutting-edge display technologies or enhancing existing designs, the EVALED7706 evaluation board is an essential tool in your development arsenal.
