Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr STMicroelectronics
Series -
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface Logic
Voltage - Load -
Voltage - Supply (Vcc/Vdd) 8V ~ 60V
Current - Output (Max) 5A
Rds On (Typ) 12mOhm
Input Type Non-Inverting
Features -
Fault Protection Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Surface Mount
Supplier Device Package PowerSSO-24
Package / Case 24-PowerBSOP (0.295", 7.50mm Width)
Base Product Number IPS1025
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372359-IPS1025HTR-32
Ultra Librarian 3D Model Ultra Librarian IPS1025HTR-32 CAD Model

Description

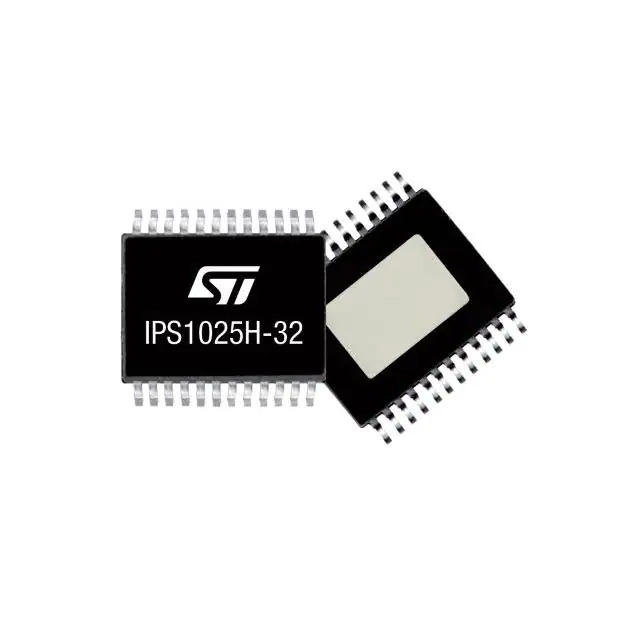

Product Overview: IPS1025HTR-32

The IPS1025HTR-32 is a high-performance, intelligent power switch from the renowned manufacturer STMicroelectronics. This component is designed to deliver efficient power management and distribution within various electronic applications. The IPS1025HTR-32 is a part of STMicroelectronics' IPS (Intelligent Power Switch) family, which is widely recognized for its reliability, robustness, and advanced features.

Key Features

  • High Voltage Capability: The IPS1025HTR-32 is capable of handling up to 32V, making it suitable for a wide range of applications that require high voltage operations.
  • Current Rating: With a continuous current rating of 9A, this power switch can manage significant current loads, ensuring stable performance in demanding situations.
  • Low On-Resistance: The device features a low on-state resistance, which minimizes power loss and improves overall efficiency.
  • Over-temperature Protection: The built-in over-temperature protection feature safeguards the device and the system from thermal damage, enhancing the product's longevity.
  • Short-circuit Protection: The IPS1025HTR-32 includes short-circuit protection, which prevents damage to the device in the event of a fault condition.
  • Overload and Overvoltage Protection: Additional protection mechanisms for overload and overvoltage conditions are integrated into the device, ensuring a high level of safety and reliability.
  • Diagnostic Feedback: Diagnostic feedback capabilities allow for monitoring the status of the switch, contributing to easier system maintenance and troubleshooting.

Applications

The IPS1025HTR-32 is suitable for a diverse set of applications, including but not limited to:

  • Automotive systems
  • Industrial control systems
  • Smart home and IoT devices
  • Power management modules
  • DC-DC converters

STMicroelectronics' commitment to quality and performance is evident in the IPS1025HTR-32, making it an excellent choice for designers and engineers looking for a reliable power switch solution. With its robust protection features and diagnostic capabilities, this intelligent power switch is engineered to meet the demands of modern electronic systems, ensuring efficient and safe power distribution.
