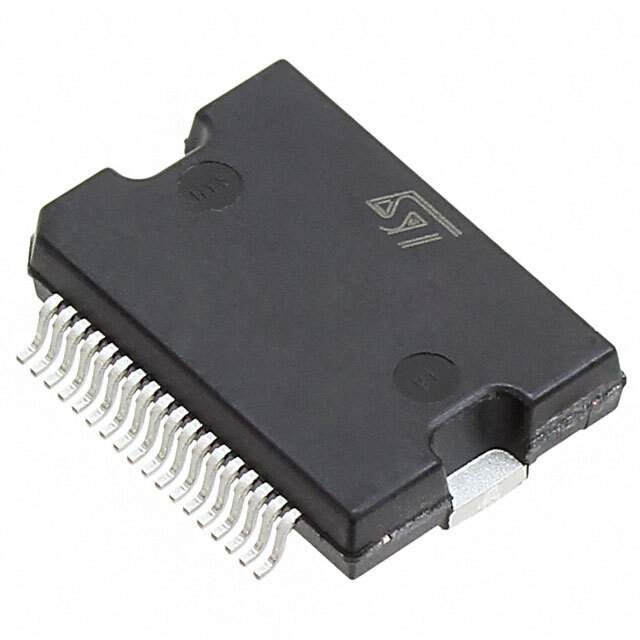

STMicroelectronics ISO8200BTR: High-Side Intelligent Power Switch

The ISO8200BTR from STMicroelectronics is a sophisticated, high-side intelligent power switch (IPS) designed to manage power distribution within automotive and industrial applications. As part of STMicroelectronics' extensive IPS portfolio, the ISO8200BTR is engineered to provide reliable and efficient control of loads with advanced protection features.

Key Features

• Eight High-Side Channels: The device integrates eight high-side channels, enabling direct control of various loads with one compact component.
• Current Rating: Each channel can handle a continuous current of up to 0.7A, making it suitable for a range of moderate power applications.
• Diagnostic Functions: Equipped with comprehensive diagnostics, the ISO8200BTR offers feedback on load status, open-load detection, and thermal shutdown, ensuring robust performance and safety.
• Over-Temperature Protection: The built-in over-temperature protection with thermal shutdown prevents damage from overheating, enhancing the longevity and reliability of the switch and the system it controls.
• Low Power Dissipation: Designed with efficiency in mind, the device features a low on-resistance, minimizing power dissipation and improving energy efficiency.
• Serial Peripheral Interface (SPI): Communication with microcontrollers is facilitated through an SPI interface, allowing for digital control and diagnostics.

Applications

The ISO8200BTR is highly versatile and can be used in a variety of applications, including but not limited to:

• Automotive systems such as body control modules, lighting, and HVAC controls.
• Industrial automation systems, including PLCs and distributed control systems.
• Robotics and intelligent motion control.

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest quality and reliability standards. The ISO8200BTR is no exception, offering robust performance in demanding environments. It is designed to comply with the rigorous specifications required in automotive and industrial applications, ensuring a reliable solution for intelligent power switching needs.
