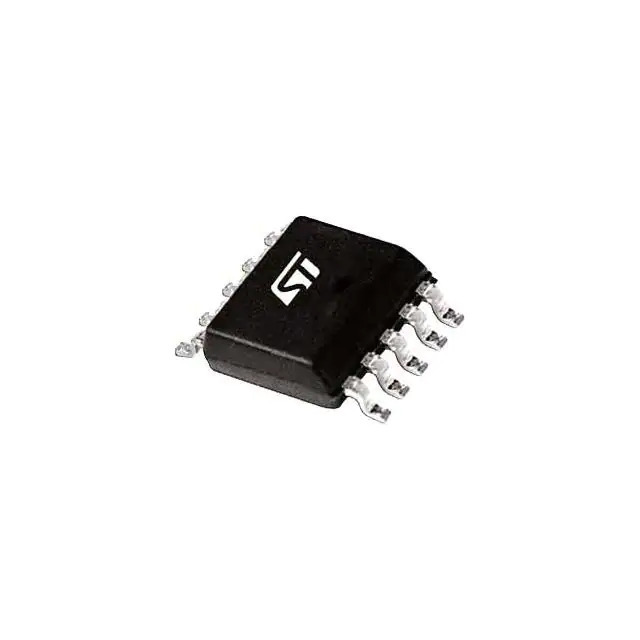

STMicroelectronics Product L4986B Overview

The L4986B is a high-performance power management integrated circuit designed by STMicroelectronics, one of the leading manufacturers in the semiconductor industry. This device is specifically engineered to deliver efficient power conversion and control in a wide range of applications, including switch-mode power supplies, LED drivers, and DC-DC converters.

Key Features

• High-Voltage Capability: The L4986B is capable of handling high input voltages, making it suitable for applications that require direct connection to the mains voltage.
• Flexible PWM Controller: It comes equipped with a pulse-width modulation (PWM) controller that offers excellent flexibility, allowing designers to tailor performance to their specific needs.
• Energy Efficient: The device is designed with energy efficiency in mind, featuring low standby power consumption and high conversion efficiency.
• Built-in Protection Features: It includes a comprehensive suite of protection features such as overvoltage, overload, and thermal shutdown to ensure reliability and safety in operation.

Applications

The L4986B is ideal for use in a variety of electronic equipment where efficient power conversion is essential. It is particularly well-suited for:

• AC-DC Adapters
• Power Supplies for LED Lighting
• Industrial Power Systems
• Consumer Electronics

Technical Specifications

The L4986B operates over a wide supply voltage range and features a programmable switching frequency that allows designers to optimize their designs for efficiency or size. The IC also integrates a soft-start function to minimize inrush current during startup, further enhancing the overall performance and longevity of the end application.

With its robust design and comprehensive feature set, the L4986B from STMicroelectronics is a reliable and versatile solution for modern power management challenges. Whether you're developing power supplies for consumer electronics or industrial systems, the L4986B provides the performance and features necessary to create efficient, reliable, and cost-effective designs.
