Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4.4V
Maximum Input Voltage 36V
Nominal Output Voltage (Min/Fixed) 1.2V
Maximum Output Voltage 35V
Output Current 1A
Frequency - Switching 250kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SO
Win Source Part Number 018250-L5970D013TR
Family Name L5970D
Introduction Date October 06, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L5970D013TR CAD Model

Description

The L5970D013TR from STMicroelectronics is a versatile and efficient step-down switching regulator designed to fulfill the needs of various applications requiring voltage regulation. This advanced power solution is capable of delivering up to 1 A of continuous output current with an input voltage range from 4.4 V to 36 V, making it a suitable choice for a wide array of electronic devices.

Key Features

  • Output Voltage Range: The device offers an adjustable output voltage from 1.235 V to 35 V, which can be set with external resistors. This flexibility allows the L5970D013TR to cater to different power requirements with ease.
  • High Efficiency: With a switching frequency of up to 500 kHz, the L5970D013TR can utilize smaller external components, resulting in a compact and efficient power supply design.
  • Thermal Overload Protection: The built-in thermal shutdown feature ensures the device operates within safe temperature limits, enhancing the reliability and longevity of the regulator and the system it powers.
  • Current Limiting: In-built current limiting protects the device and the load from damage in the event of an output overload or short-circuit condition.

Applications

The L5970D013TR is engineered to serve a broad spectrum of applications, including but not limited to:

  • Consumer electronics
  • Telecommunication devices
  • Computer peripherals
  • Industrial systems

Package and Quality

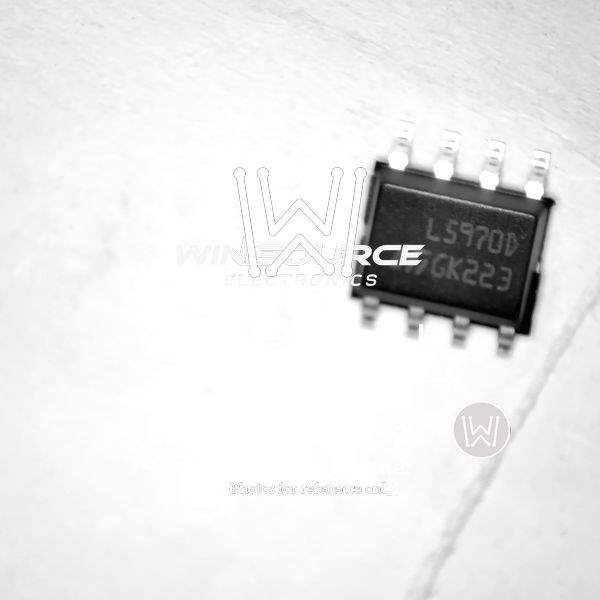

The L5970D013TR is available in a SO-8 package, which is known for its small footprint and suitability for space-constrained applications. STMicroelectronics ensures high manufacturing standards, so the L5970D013TR meets rigorous quality and performance criteria.

Conclusion

With its comprehensive feature set, including adjustable output voltage, high efficiency, and robust protection mechanisms, the L5970D013TR from STMicroelectronics is an excellent choice for designers looking to create reliable and efficient power supply circuits. Its versatility and high performance make it an ideal component for a wide range of electronic products.
