Products specifications Report Issue?

Win Source Part Number Cross

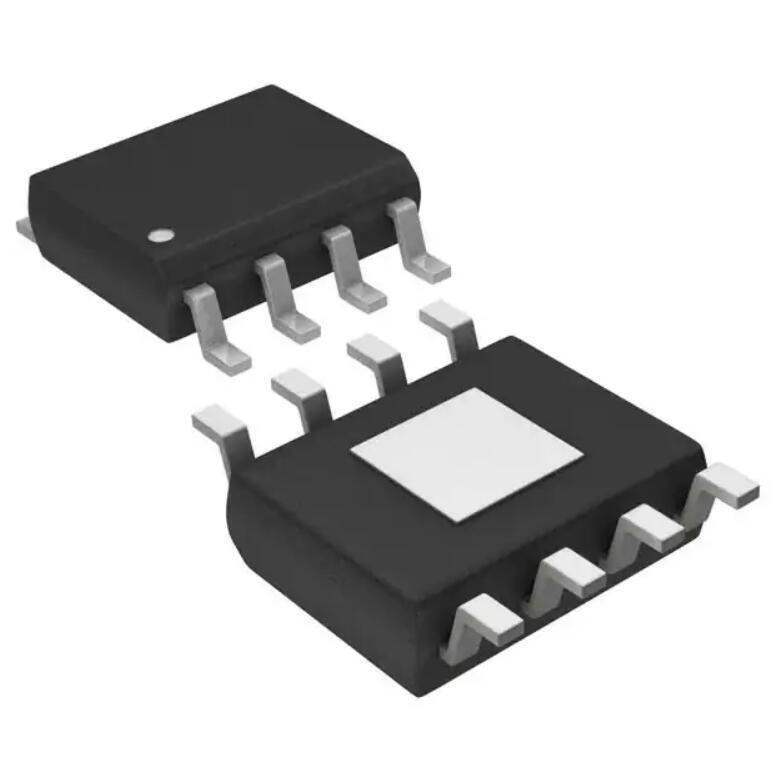

Win Source Part Number WS1196668-L7980A
Manufacturer STMicroelectronics
Category Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Package Tube
Product Status Obsolete
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Frequency - Switching 250kHz ~ 1MHz
Operating Temperature -40°C ~ 150°C (TJ)
Ultra Librarian 3D Model Ultra Librarian L7980A CAD Model

Description

The L7980A from STMicroelectronics is a highly efficient, monolithic synchronous step-down switching regulator that is designed to deliver a constant, stable output voltage from a wider input voltage range. This makes it an ideal choice for a variety of applications, including industrial control systems, consumer electronics, and automotive applications where power efficiency and reliability are critical.

The device operates from an input voltage range of 4.5V to 28V, which allows it to accommodate a variety of power sources, including single-cell Li-ion batteries, multiple Alkaline/NiCd/NiMH cells, automotive inputs, and more. The L7980A can provide an output current up to 2A, depending on the input/output voltage ratio and ambient temperature, making it suitable for powering medium-load devices.

One of the key features of the L7980A is its high efficiency, which is achieved through its synchronous rectification design, where the low-side MOSFET is integrated. This design minimizes the need for an external Schottky diode, reducing conduction losses and improving overall efficiency. The device also features a fixed 370 kHz switching frequency, which helps to optimize the size of external components, such as inductors and capacitors, thus saving space on the PCB.

The L7980A provides several protection features to ensure the safety and longevity of the end application. These include overcurrent protection, thermal shutdown, and a real-time output voltage monitoring that enables the device to respond quickly to any load variations or transient conditions.

For design flexibility, the L7980A offers an adjustable output voltage that can be set from as low as 0.6V up to the input voltage, using external resistors. This feature allows designers to tailor the output voltage to the specific needs of their application without the need for additional components.

In summary, the STMicroelectronics L7980A is a versatile, efficient, and reliable step-down switching regulator that provides a compact and cost-effective power management solution for a wide range of applications.
