Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 64 (±2g) to 5 (±16g)
Bandwidth 0.5Hz to 2.69kHz
Output Type I2C, SPI
Supply Voltage - Operating 1.71 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-LGA (2x2)
Win Source Part Number 1052560-LIS2DE12TR
Family Name LIS2DE12
Introduction Date May 27, 2015
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LIS2DE12TR CAD Model

Description

STMicroelectronics LIS2DE12TR Accelerometer

The LIS2DE12TR is a high-performance, ultra-low-power 3-axis "femto" accelerometer belonging to the "nano" family, manufactured by STMicroelectronics. This MEMS (Micro-Electro-Mechanical Systems) device is designed to cater to the demanding needs of mobile applications and is ideal for a wide range of consumer electronics due to its compact footprint and impressive power efficiency.

With its advanced technology, the LIS2DE12TR provides multiple operating modes designed to optimize power consumption and noise performance for each specific application. The accelerometer operates over a selectable full-scale range of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz.

The device features an embedded high-resolution 12-bit ADC (Analog-to-Digital Converter), which allows it to capture the minutest movements with high precision. Additionally, the LIS2DE12TR is equipped with smart embedded functions such as motion detection, click/double-click recognition, and free-fall detection, making it a versatile choice for implementing motion-related features in user applications.

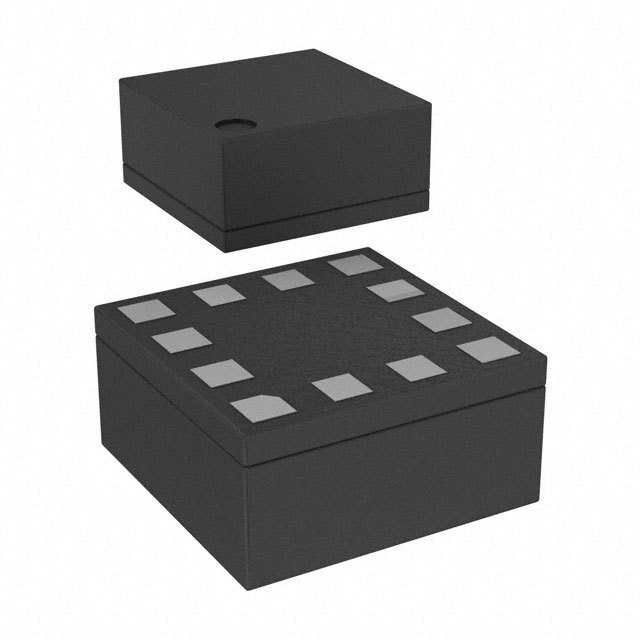

One of the key advantages of the LIS2DE12TR is its small size, coming in a thin plastic land grid array package (LGA) that measures just 2.0 x 2.0 x 0.65 mm. This tiny footprint allows it to be easily integrated into space-constrained designs without compromising performance.

Interfacing with the LIS2DE12TR is made simple through its I2C/SPI digital output interface. This ensures compatibility with most microcontrollers, allowing for straightforward integration into system designs. Furthermore, the device offers several programmable interrupts that can be mapped to various functions, reducing the processing load on the main controller and enabling power-saving strategies.

Overall, the LIS2DE12TR from STMicroelectronics is a versatile, power-conscious solution for adding motion sensing to a vast array of products, including mobile phones, gaming devices, digital cameras, and portable health monitoring systems. Its robust feature set and ease of integration make it an excellent choice for designers looking to enhance their applications with reliable motion detection capabilities.
