The LIS3DSHTR is a high-performance three-axis linear accelerometer belonging to the family of motion sensors from STMicroelectronics. This device is particularly designed to deliver advanced features and robust performance for a wide range of applications, including gaming and virtual reality inputs, impact recognition and logging, vibration monitoring and compensation, and smart power-saving for handheld devices.

Key Features

• Wide Range of Measurement: The LIS3DSHTR can measure accelerations up to ±2g/±4g/±6g/±8g/±16g, making it versatile for different use cases.
• High Resolution: It offers a 16-bit data output, allowing for precise tracking of acceleration.
• Advanced Power-Saving Modes: With several power modes, this sensor can optimize power consumption for battery-powered devices, extending their operational life.
• Smart FIFO: The built-in FIFO (First In First Out) memory block enhances the flexibility in data management and reduces the demand on the host processor.
• Programmable State Machine: An embedded state machine can execute motion-based commands without the need for continuous data processing by the host, thereby reducing power consumption.
• Temperature Sensor: An integrated temperature sensor ensures that the device can maintain accuracy across a wide temperature range.

Applications

The LIS3DSHTR is suitable for a broad range of applications, including but not limited to:

• Mobile and handheld devices
• Pedometers and step counters
• Gaming and virtual reality systems
• Impact recognition and logging systems
• Antitheft systems

Technical Specifications

With an operating voltage ranging from 1.71V to 3.6V, the LIS3DSHTR is an energy-efficient device. It communicates via SPI/I2C serial interfaces, providing easy integration with most microcontrollers. The sensor is also designed with high shock survivability, rated at up to 10000g, ensuring durability in harsh environments.

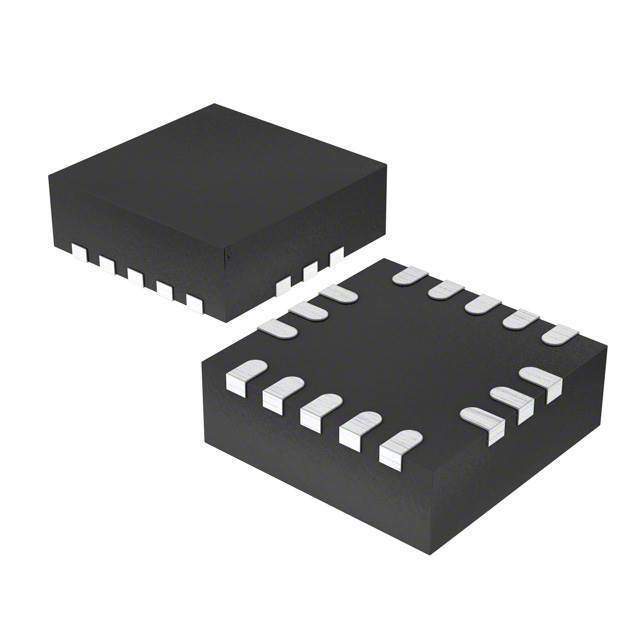

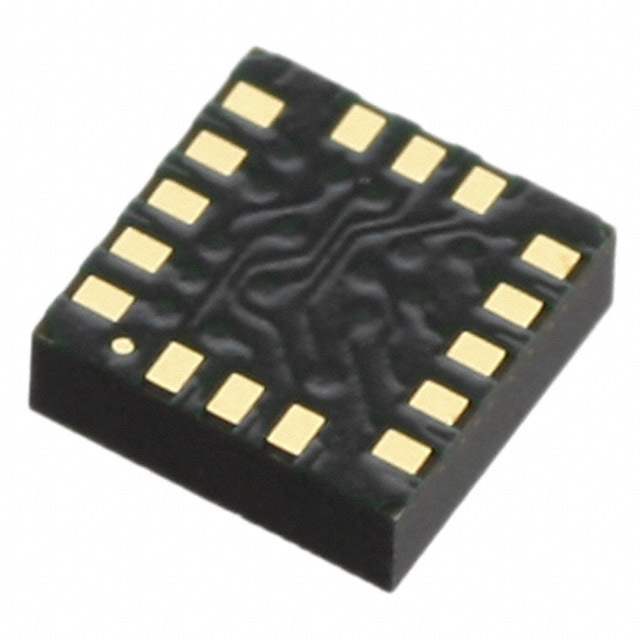

STMicroelectronics has packaged the LIS3DSHTR in an ultra-compact, high-performance package, making it an ideal choice for space-constrained applications. Its robust design and comprehensive feature set ensure that it is a go-to solution for developers looking to incorporate reliable motion sensing into their products.
