The LM158DT from STMicroelectronics is a versatile, high-performance dual operational amplifier that has been designed to offer a perfect balance between speed and power consumption, making it suitable for a wide range of applications. With its low input bias currents, it is particularly adept at handling tasks that require a high level of precision.
Key Features
- Wide Power Supply Range: The LM158DT can operate from a power supply range of 3V to 30V for single supply operation, or ±1.5V to ±15V for dual supplies, providing flexibility in various circuit configurations.
- Low Input Bias Current: The device features a low input bias current of 20nA (typical), which is advantageous in applications where input offset is a critical factor.
- Low Power Consumption: With a typical power consumption of just 500µA per amplifier, the LM158DT is an excellent choice for battery-powered devices and energy-efficient designs.
- High Gain Bandwidth Product: A gain bandwidth product of 1.1MHz (typical) allows the LM158DT to be used in applications that require a good frequency response.
- Large Output Voltage Swing: The output can swing from 0V to Vcc - 1.5V, providing a wide dynamic range for signal processing.
Applications
The LM158DT is well-suited for a variety of applications, including but not limited to:
- Transducer amplifiers
- DC gain blocks
- All the conventional OP AMP circuits
- Battery-powered and portable devices
- Analog filters
- Data acquisition systems
Package and Quality

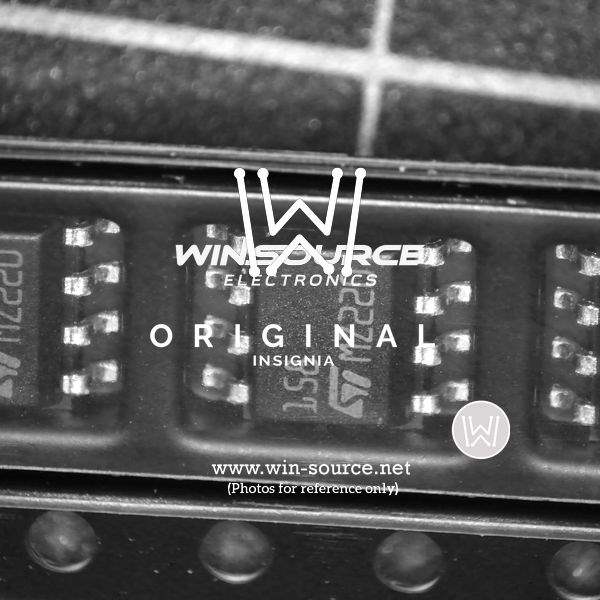

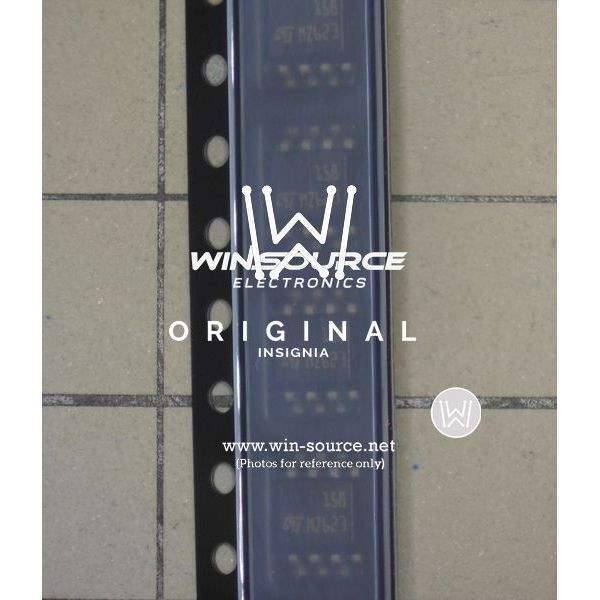

Housed in an SO-8 package, the LM158DT is compact and suitable for space-constrained applications. The device is also characterized for operation from -40°C to +105°C, ensuring reliability across a wide range of environmental conditions. STMicroelectronics is committed to delivering high-quality products, and the LM158DT is no exception, meeting stringent industry standards for performance and reliability.
