Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Comparators
Mfr STMicroelectronics
Series -
Package Tape & Reel
Product Status Active
Type General Purpose
Number of Elements 2
Output Type Open-Collector, Rail-to-Rail
Voltage - Supply, Single/Dual (±) 2V ~ 36V, ±1 V ~ 18V
Voltage - Input Offset (Max) 7mV @ 30V
Current - Input Bias (Max) 0.25µA @ 5V
Current - Output (Typ) 16mA
Current - Quiescent (Max) 2.5mA
CMRR, PSRR (Typ) -
Propagation Delay (Max) -
Hysteresis -
Temperature Range - Operating -40°C ~ 125°C

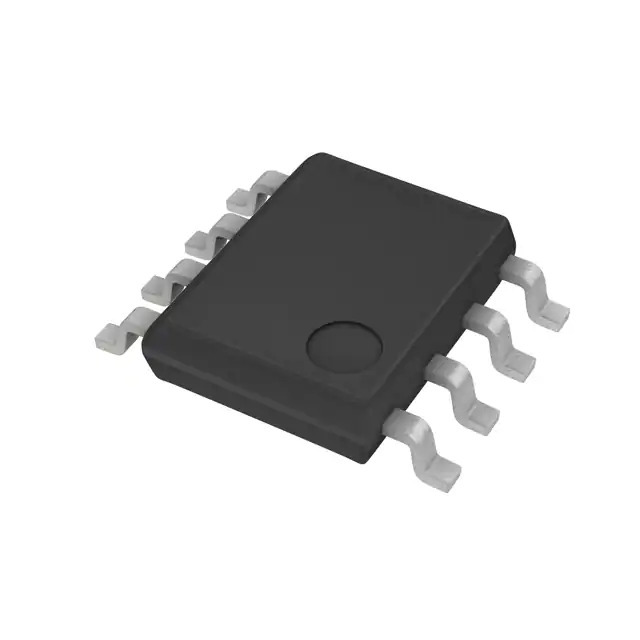

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type Surface Mount
Supplier Device Package 8-MiniSO
Base Product Number LM2903
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1357442-LM2903ST
Ultra Librarian 3D Model Ultra Librarian LM2903ST CAD Model

Description

The LM2903ST from STMicroelectronics is a dual differential comparator designed to operate from a single power supply over a wide range of voltages. This versatile device is optimized for low voltage, low power, and high-speed applications, making it an ideal choice for a variety of electronic circuits that require precise voltage monitoring and control.

Key Features

  • Wide Supply Voltage Range: Operates from 2V to 36V single supply or ±1V to ±18V dual supplies.
  • Low Supply Current Drain: Independent of the supply voltage, which makes it suitable for battery-operated devices.
  • Low Input Biasing Current: Ensures minimal interference with the circuits being monitored.
  • Low Input Offset Voltage: Allows for more accurate comparisons and measurements.
  • Output Compatible with TTL, MOS, and CMOS: Can easily interface with a wide range of digital logic systems.
  • Open Collector Outputs: Offers flexibility in creating voltage-level translation circuits or driving loads.

Applications

The LM2903ST is widely employed in systems requiring voltage level detection and control. Its applications span across:

  • Limit Comparators
  • Simple Analog-to-Digital Converters
  • Voltage Monitoring
  • Relay Drivers
  • Consumer Electronics
  • Automotive Systems
  • Industrial Control Panels

Package and Quality

The LM2903ST is provided in a small-outline package, ensuring compactness and ease of integration into space-constrained designs. STMicroelectronics is committed to high standards of quality and reliability, and the LM2903ST is no exception, undergoing rigorous testing to ensure performance across its intended applications.

Environmental Compliance

STMicroelectronics is dedicated to environmental stewardship. The LM2903ST is designed with eco-friendly materials and complies with international environmental regulations, including RoHS and REACH.
