Products specifications

Manufacturer STMicroelectronics
Standard Package 490
Category Sensors Transducers
Family Gyroscopes
Series MEMS
Range °/s ±1000°/s
Sensitivity 1.1mV/°/s
Typical Bandwidth 140Hz
Operating Supply Voltage 2.7 V ~ 3.6 V
Current - Supply 4.2mA
Output Type Analog
Operating Temperature Range -40°C ~ 85°C

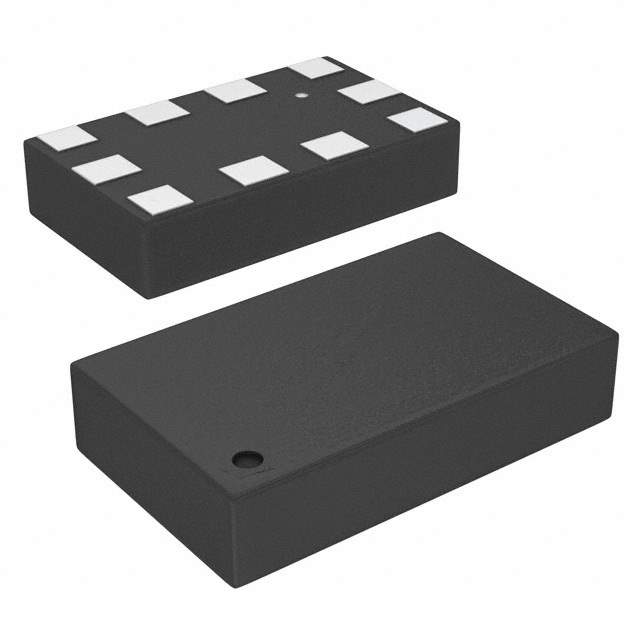

Package 10-TLGA
Manufacturer Device Package 10-LGA (3x5)
Win Source Part Number 041276-LY3100ALH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Consumer Electronics, Industrial, Robotics, Portable Devices
Family Name LY3100ALH
Introduction Date October 29, 2009
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LY3100ALH CAD Model

Description

The LY3100ALH is a high-end micro-machined gyroscope crafted by STMicroelectronics, designed to cater to the demanding requirements of advanced motion-sensing applications. This gyroscope is part of STMicroelectronics' reputable product line, known for its exceptional performance, reliability, and precision.

Key Features

  • High Precision: The LY3100ALH offers excellent rate sensitivity, ensuring accurate angular rate detection and measurement, critical for applications requiring fine motion control and stabilization.
  • Wide Measurement Range: It is capable of measuring angular rates with a wide full-scale range, providing versatility for various use cases.
  • Low Power Consumption: Designed for efficiency, the LY3100ALH maintains low power consumption, making it suitable for battery-powered devices.
  • High Stability: The device features high stability over temperature and time, ensuring consistent performance under varying conditions.
  • Analog Interface: An easy-to-use analog interface allows for straightforward integration with existing systems and electronics.
  • Robust Design: Enclosed in a hermetic package, the LY3100ALH is built to withstand harsh environments and maintain its integrity over a long lifespan.

Applications

The LY3100ALH is suitable for a broad range of applications, from industrial to consumer electronics. It is an ideal component for:

  • Vehicle navigation and telematics
  • Robotics and unmanned vehicles
  • Stabilization systems in cameras and drones
  • Gaming and virtual reality devices
  • Sports equipment analytics

Technical Specifications

STMicroelectronics ensures that the LY3100ALH meets stringent technical specifications, with a focus on delivering top-notch performance and quality. The device's technical specs include a wide operating temperature range, high shock survivability, and a compact form factor for easy integration into space-constrained applications.

For detailed technical specifications, datasheets, and support resources, visit the STMicroelectronics website or contact their customer support team.
