Product Overview: M24C02-DRMF3TG/K

The M24C02-DRMF3TG/K is a high-performance, 2 Kbit serial I²C bus EEPROM (Electrically Erasable Programmable Read-Only Memory) from STMicroelectronics, a leader in semiconductor solutions. This device is specifically designed for advanced data storage applications where low power consumption and a small footprint are essential.

Key Features

• Memory Size: 2 Kbits of EEPROM, organized as 256 x 8 bits, which is ideal for storing configuration settings, small look-up tables, and device identification data.
• Interface: The device supports the I²C serial interface, ensuring compatibility with a wide range of microcontrollers and easy integration into existing systems.
• Write Cycle Time: Fast write cycle times of 5 ms typical, allowing for quick updates to stored data without significant delays.
• Operating Voltage Range: A wide range of operating voltages from 1.8V to 5.5V makes this EEPROM suitable for various applications and logic levels.
• Data Retention: Guaranteed data retention of 40 years, providing long-term reliability for applications where data integrity over time is critical.
• Write Endurance: High write endurance of 1 million write cycles per byte, ensuring the EEPROM can handle frequent data updates throughout its lifespan.
• Temperature Range: The device operates over an extended temperature range from -40°C to +85°C, suitable for industrial and automotive environments.

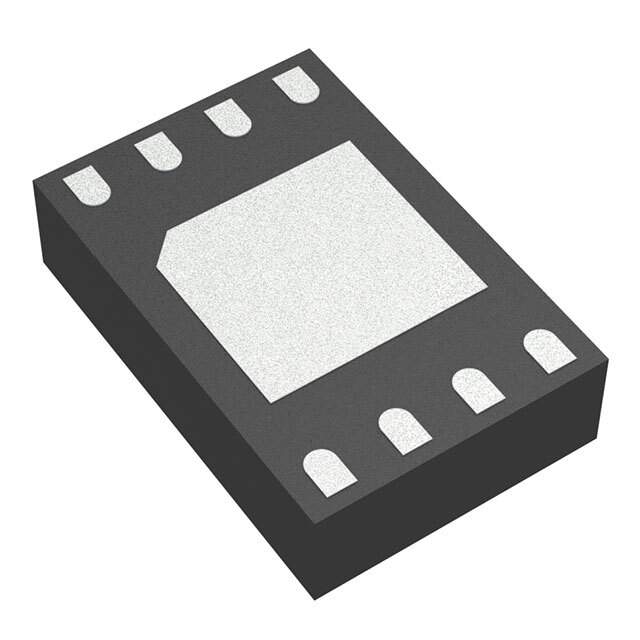

• Packaging: Supplied in a RoHS-compliant and halogen-free 8-pin UFDFPN package, the M24C02-DRMF3TG/K is designed for space-constrained applications.

Applications

The M24C02-DRMF3TG/K EEPROM is versatile and can be used in a wide array of applications. It is particularly well-suited for:

• Smart cards and identification systems
• Consumer electronics such as set-top boxes, TVs, and gaming consoles
• Automotive applications, including infotainment systems and ECU memory
• Industrial and medical equipment requiring reliable non-volatile memory storage
• Portable devices where power efficiency is paramount

With its robust design and reliable performance, the M24C02-DRMF3TG/K from STMicroelectronics represents a smart choice for designers who need a compact, efficient, and durable storage solution.
