Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features FLASH - NOR Memory IC 2Mb (256K x 8, 128K x 16) Parallel 45 ns 48-TSOP
Manufacturer STMicroelectronics
Package Tray
Part Status Obsolete
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Surface Mount
Package 48-TFSOP (0.724", 18.40mm Width)
Case / Package 48-TSOP
Family Name M29F200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8542.32.0071
Quantity per package 96
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880583-M29F200BB45N1
Ultra Librarian 3D Model Ultra Librarian M29F200BB45N1 CAD Model

Description

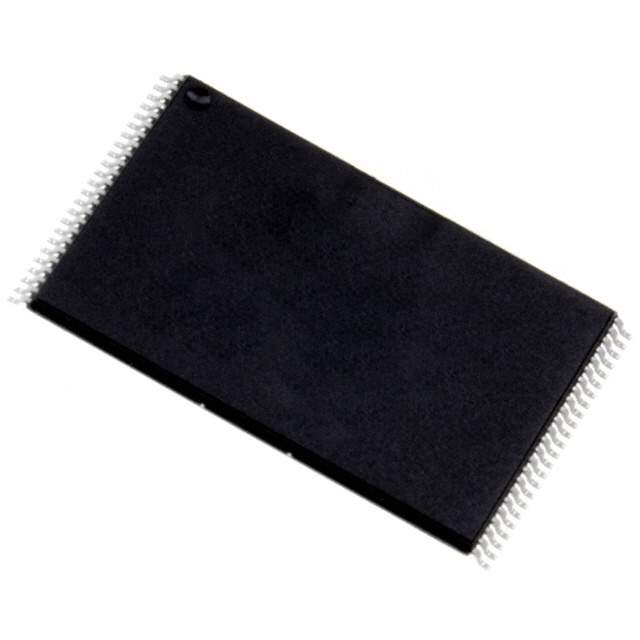

STMicroelectronics M29F200BB45N1 Flash Memory

The M29F200BB45N1 is a versatile, high-performance 2 Mbit (2,097,152 bits) Flash memory device from STMicroelectronics, designed to meet the rigorous demands of embedded applications. This non-volatile memory component offers an excellent solution for firmware storage and updates, with its ability to be electrically erased and reprogrammed. The M29F200BB45N1 is part of the well-established Flash memory family that has been widely adopted across various sectors, including consumer electronics, automotive, and industrial control systems.

Constructed with a boot block architecture, the M29F200BB45N1 features a memory array divided into uniform blocks, including a protected boot block sector designed for safe storage of critical boot code. This block can be located at either the top or bottom of the memory address space, depending on the specific variant of the device. The device operates on a single 5V power supply, making it compatible with many legacy systems and simplifying power management in mixed-voltage designs.

The M29F200BB45N1 has a fast access time of 45 ns, allowing quick read operations, which is crucial for high-speed microprocessors and the efficient execution of code. It supports bytewide (x8) or wordwide (x16) bus operations, providing flexibility in interfacing with different types of microcontrollers or processors. The programming of the device is made easier by the fact that it can be performed in standard EPROM programmers, ensuring a wide range of development tools compatibility.

For data protection, the M29F200BB45N1 features a hardware-based write protection mechanism. A dedicated pin is used to enable or disable write operations, thereby preventing accidental data corruption during power transitions or system malfunctions. Additionally, the device offers a status register that provides a means for detecting the completion of programming operations, ensuring data integrity during write cycles.

In summary, the M29F200BB45N1 from STMicroelectronics is a reliable and flexible Flash memory solution, suitable for a wide array of applications where data storage integrity and operational efficiency are paramount. Its robust design, coupled with easy programmability and protection features, makes it an ideal choice for developers looking to integrate stable non-volatile memory into their designs.
