Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32H7
Package Tray
Core Processor ARM® Cortex®-M4/M7
Core Size 32-Bit Dual-Core
Speed 240MHz, 480MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 148
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 1M x 8
Supply Voltage - Operating 1.62V ~ 3.6V
Data Converters A/D 32x16b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

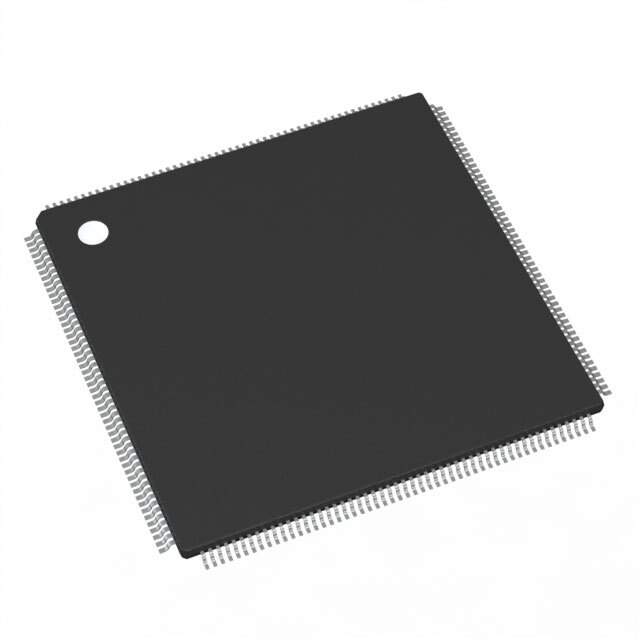

Package / Case 208-LQFP
Supplier Device Package 208-LQFP (28x28)
Base Product Number STM32
Standard Package 360
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1262581-STM32H755BIT6
Ultra Librarian 3D Model Ultra Librarian STM32H755BIT6 CAD Model

Description

STM32H755BIT6 Microcontroller Overview

The STM32H755BIT6 is a state-of-the-art microcontroller unit (MCU) from STMicroelectronics, designed to cater to the demanding needs of modern embedded systems. This high-performance MCU is part of the STM32H7 series, which is renowned for its advanced features and capabilities that enable developers to create sophisticated applications across a range of industries.

Key Features

  • Advanced Core: At the heart of the STM32H755BIT6 is the ARM Cortex-M7 processor, which can run up to 480 MHz, providing the computational power necessary for complex tasks and real-time operations.
  • Dual-Bank Flash Memory: The MCU comes equipped with 2 Mbytes of Flash memory, organized in two banks that allow read-while-write capability, which is crucial for seamless firmware upgrades and high reliability.
  • Rich Connectivity: It offers a variety of connectivity options including USB OTG, Ethernet, CAN, SPI, I2C, and USART interfaces, making it an excellent choice for applications that require robust communication capabilities.
  • Enhanced Graphics: With its Chrom-ART Acceleratorâ„¢, the STM32H755BIT6 is capable of delivering advanced graphics performance, which is ideal for user interfaces with rich visuals.
  • Flexible Memory Configuration: In addition to its internal Flash, it supports a range of external memory interfaces, including SDRAM, SRAM, NOR, NAND, and FRAM, allowing for versatile memory expansion options.

Applications

The STM32H755BIT6 is well-suited for a wide array of applications, such as:

  • Industrial control systems
  • High-end consumer electronics
  • Advanced motor control
  • Medical equipment
  • Internet of Things (IoT) devices

Development Support

STMicroelectronics provides comprehensive development support for the STM32H755BIT6 with software tools, libraries, and documentation to streamline the development process. The STM32Cube ecosystem offers a full range of software tools, including STM32CubeMX for initialization code generation and STM32CubeIDE for integrated development.

With its excellent performance, rich feature set, and extensive development support, the STM32H755BIT6 MCU is an ideal choice for engineers and developers looking to push the boundaries of what's possible in embedded system design.
