Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete
Core Processor PowerPC e300
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 400MHz
Co-Processors/DSP Security; SEC
RAM Controllers DDR
Graphics Acceleration No
Ethernet 10/100/1000Mbps (2)
USB USB 2.0 + PHY (2)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating 0°C ~ 105°C
Security Features Cryptography, Random Number Generator
Manufacturer Package 620-BBGA Exposed Pad
Supplier Device Package 620-PBGA (29x29)
Additional Interfaces DUART, I2C, PCI, SPI
Family Part Number MPC8347
Manufacturer Pack Quantity 36
MSL Level 3 (168 Hours)
Win Source Part Number 755136-MPC8347EZQAGDB
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MPC8347EZQAGDB CAD Model

Description

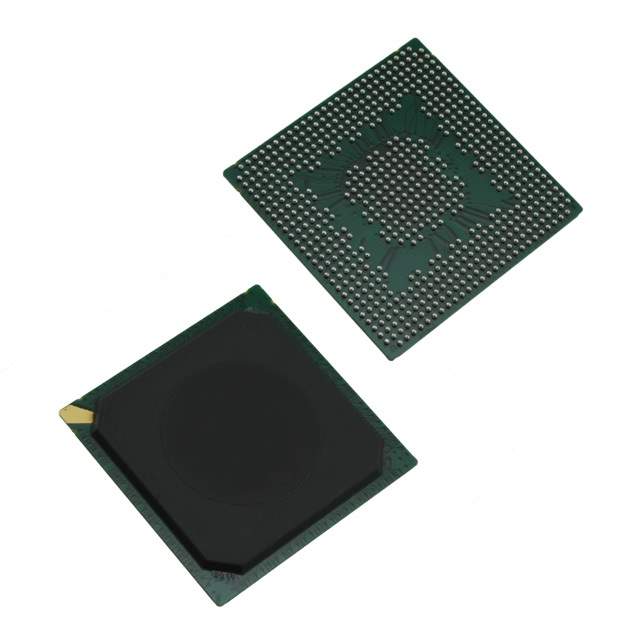

Introducing the NXP MPC8347EZQAGDB Processor

The NXP MPC8347EZQAGDB is a high-performance, power-efficient processor designed to meet the needs of a wide range of applications. This processor is part of the PowerQUICC II Pro family, which is renowned for its integrated communications processors that combine high-speed processing ability with enhanced peripheral integration.

At the heart of the MPC8347EZQAGDB lies an e300 core built on Power Architecture technology, which operates at speeds up to 667 MHz. This core is designed to deliver exceptional computing power while maintaining energy efficiency, making it an ideal choice for embedded applications in the networking, telecommunications, and industrial markets.

The processor boasts an impressive array of features including an integrated memory controller, dual Ethernet ports, and a PCI interface. The memory controller supports DDR and DDR2 SDRAMs, providing flexible options for system designers to optimize performance and cost. The dual Ethernet controllers facilitate high-speed data transfers and network connectivity, while the PCI interface allows for easy expansion and integration of additional peripherals.

Security is a key concern in today's connected world, and the MPC8347EZQAGDB addresses this with its integrated security engine. This engine provides hardware acceleration for cryptographic operations, ensuring secure data transmission without compromising system performance.

For developers, the processor is supported by a comprehensive suite of software tools and development platforms, simplifying the design process and reducing time to market. The MPC8347EZQAGDB is also designed for longevity, with NXP's commitment to long-term availability, making it a reliable choice for products with extended life cycles.

Overall, the NXP MPC8347EZQAGDB is a versatile and powerful processor that offers a balanced combination of processing power, integrated features, and security. Whether it's for advanced networking equipment, sophisticated industrial control systems, or secure communication devices, the MPC8347EZQAGDB is engineered to deliver robust performance and reliability.

For more technical specifications and product support, visit the NXP official website or contact your local NXP sales representative.
