The M95M01-DFCS6TP/K is a robust and efficient serial EEPROM memory chip from STMicroelectronics, designed to provide flexible data storage solutions for a wide range of electronic applications. With a 1 Mbit (128K x 8) capacity, this EEPROM is ideal for applications requiring high-density, non-volatile memory storage. Its serial SPI bus interface ensures compatibility with most microcontrollers, making it a versatile choice for designers.

Key Features

• High Storage Capacity: With 1 Mbit of memory, the M95M01-DFCS6TP/K can store substantial amounts of data, making it suitable for complex applications.
• Serial Peripheral Interface (SPI): The device supports a high-speed SPI bus, facilitating easy integration with a wide array of microcontrollers and processors.
• Wide Operating Voltage Range: The EEPROM operates across a voltage range of 1.8V to 5.5V, allowing for flexible usage in different system voltage levels.
• High Reliability: The memory chip is rated for over 1 million write/erase cycles and has a data retention period of over 40 years, ensuring long-term reliability of stored data.
• Fast Write Cycle: It offers a write cycle time of just 5 ms, enabling quick data storage and updates.
• Temperature Range: Designed to operate within an industrial temperature range of -40°C to +85°C, the M95M01-DFCS6TP/K is suitable for harsh environments.
• Advanced Protection Features: Includes Write Protect (WP) pin and Write Disable instructions for hardware and software data protection.

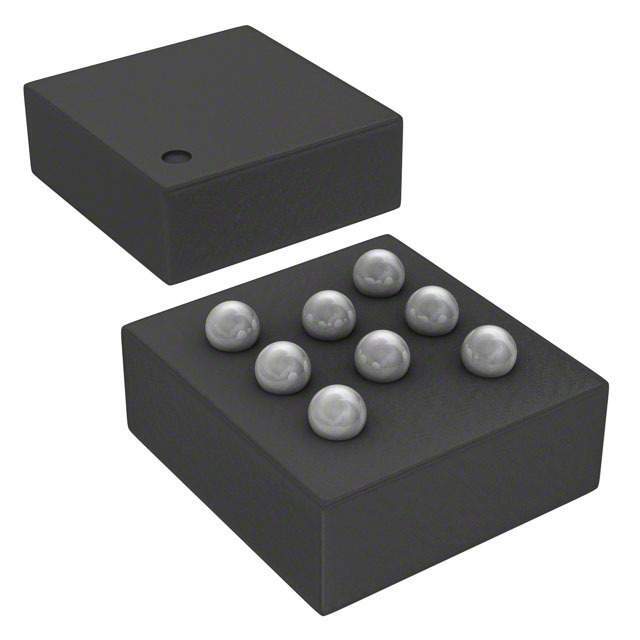

• Compact Package: Available in an 8-pin ultra-thin package, it is ideal for space-constrained applications.

Applications

The M95M01-DFCS6TP/K EEPROM is well-suited for a variety of applications, including:

• Industrial and medical equipment
• Consumer electronics
• Automotive systems
• Networking and telecommunications
• Smart cards and identification systems

This EEPROM from STMicroelectronics is a reliable and flexible solution for designers looking to incorporate non-volatile memory into their systems. Its robust feature set ensures it can meet the demands of a wide range of applications.
