The MD1803DFX is a state-of-the-art NPN silicon power transistor developed by STMicroelectronics, a global leader in semiconductor solutions. This high-voltage device is designed to deliver outstanding performance in a wide range of applications, including horizontal deflection for CRT monitors and TVs, switching power supplies, and high-frequency inverters.

Key Features

• High Voltage Capability: The MD1803DFX can handle high voltages, making it suitable for applications that require robust performance in demanding conditions.
• High Speed: With a fast switching speed, this transistor is ideal for high-frequency operations, ensuring efficient performance in power supplies and inverters.
• Low Spread of Dynamic Parameters: The minimal variation in dynamic parameters ensures consistent performance, which is crucial for reliable operation in electronic circuits.
• Very High Switching Speed: The device's rapid switching capability enhances overall efficiency in applications where speed is a critical factor.

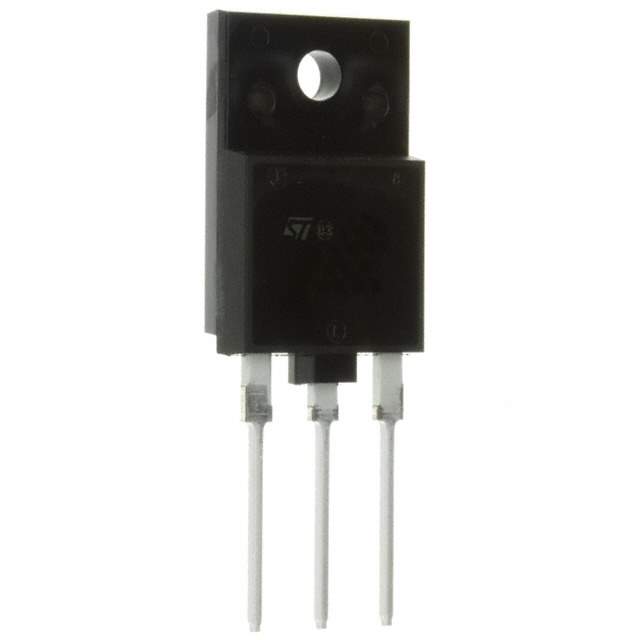

• Insulated Package: The MD1803DFX comes in an ISOWATT218FX package, providing excellent insulation and thermal performance.

Applications

The versatility of the MD1803DFX allows it to be used in a variety of electronic equipment, including:

• Horizontal deflection systems for CRT monitors and television sets.
• Switching power supplies that require high-speed switching and reliability.
• High-frequency inverters used in industrial applications.
• Power amplifiers where high voltage operation is needed.

Technical Specifications

Some of the key technical specifications of the MD1803DFX include:

• Collector-Emitter Voltage (Vceo): 1500V
• Collector Current (Ic): 6A
• Power Dissipation (Pc): 125W
• Transition Frequency (ft): 4MHz
• Operating Junction Temperature (Tj): -65 to 150°C

With its robust design and advanced technology, the MD1803DFX from STMicroelectronics is an excellent choice for designers and engineers looking to enhance the performance and reliability of their high-voltage applications.
