Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr STMicroelectronics
Product Status Obsolete
RF Family/Standard General ISM < 1GHz
Modulation 2-FSK, ASK, GFSK, GMSK, OOK
Frequency 915MHz
Data Rate 500kbps
Power - Output 11.6dBm
Serial Interfaces SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part SPIRIT1
Memory Size 128kB Flash, 16kB RAM
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 13.5mA
Current - Transmitting 8mA ~ 20mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-SMD Module
Base Product Number SP1ML
Other Names 497-15396,-1138-SP1ML-915
Standard Package 119
MSL Level 1 (Unlimited)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1235667-SP1ML-915
Ultra Librarian 3D Model Ultra Librarian SP1ML-915 CAD Model

Description

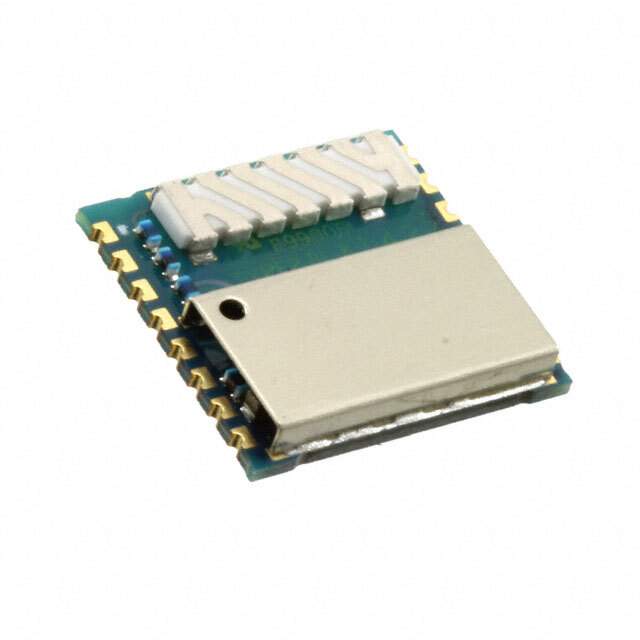

The SP1ML-915 is a state-of-the-art RF module designed by STMicroelectronics, tailored for RF communication in the 915 MHz ISM band. This powerful module is part of the company's extensive range of smart, low-power, short-range sub-GHz devices. It is particularly suited for applications in North America where the 915 MHz band is allocated for industrial, scientific, and medical (ISM) uses.

Main Features

  • Frequency Band: Specifically designed for the 915 MHz ISM band, ensuring compliance with regional standards for North America.
  • Integration: The module integrates a low-power sub-GHz radio transmitter/receiver with an embedded microcontroller, making it a versatile solution for a wide range of wireless applications.
  • Modulation Techniques: Supports advanced modulation schemes such as 2-FSK, GFSK, OOK, and ASK, providing flexibility in addressing different communication requirements.
  • Output Power: Offers programmable output power up to +11 dBm, allowing users to balance between communication range and power consumption.
  • Low-Power Consumption: Designed with energy efficiency in mind, it is ideal for battery-powered applications where power conservation is crucial.
  • Security: Features built-in encryption capabilities to ensure secure data transmission, protecting against unauthorized access.

Applications

The SP1ML-915 module is highly versatile and can be used in a variety of applications, including but not limited to:

  • Home and building automation
  • Wireless sensor networks
  • Industrial monitoring and control
  • Smart metering
  • IoT (Internet of Things) devices

Easy to Integrate

With its compact form factor and comprehensive set of features, the SP1ML-915 is designed for easy integration into existing and new product designs. It is a perfect choice for designers looking to add wireless communication capabilities with minimal development time and effort.

Support and Resources

STMicroelectronics provides extensive support for the SP1ML-915 module, including detailed datasheets, application notes, and development tools to streamline the design process and accelerate time to market for your products.
