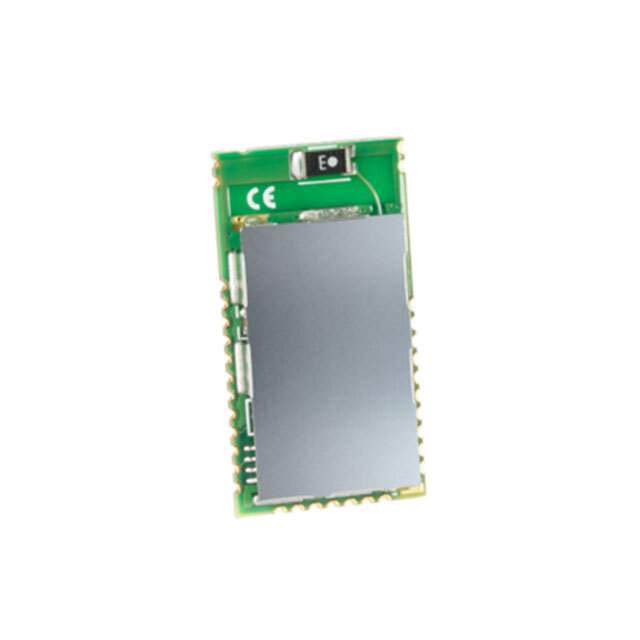

BM78SPPS5MC2-0002AA

Part No BM78SPPS5MC2-0002AA
Manufacturer Microchip Technology
Catalog END - OF - LIFE
Description Bluetooth® 4.2 Dual-Mode Module
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $23.9472 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
2+
$34.9260
$69.852
4+
$28.6570
$114.628
6+
$27.7620
$166.572
8+
$26.8660
$214.928
10+
$25.9710
$259.710
13+
$23.2840
$302.692
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 1,640 pieces
MOQ: 2 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Tray
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Frequency 2.4GHz
Power - Output 10dBm
Sensitivity -92dBm
Serial Interfaces UART
Antenna Type Integrated, Chip
Memory Size 4MB Flash, 320kB ROM, 28kB SRAM
Operating Supply Voltage 3.3V
Current - Receiving 37mA
Current - Transmitting 43mA
Mounting SMD
Operating Temperature Range -20°C ~ 70°C
Package Module
Win Source Part Number 1153908-BM78SPPS5MC2-0002AA
Manufacturer Homepage www.microchip.com
Family Name BM78SPPS5MC2-0002AA
Introduction Date January 06, 2016
ECCN 5A992.c
Estimated EOL Date 2027
Popularity Medium
Fake Threat In the Open Market 57 pct.
Supply and Demand Status Balance
Alternative Parts
(Cross-Reference)
ENW89837A5KF;  SPBT3.0DP2;

Description

The BM78SPPS5MC2-0002AA is a cutting-edge Bluetooth module developed by Microchip Technology, designed to provide a seamless and reliable wireless communication solution for a wide range of applications. This dual-mode module supports both Bluetooth Classic (BR/EDR) and Bluetooth Low Energy (BLE) protocols, making it extremely versatile for various connectivity needs.

This compact module is part of Microchip's BM78 series and is known for its ease of integration into existing systems, thanks to its surface-mount design. It is ideal for designers looking to implement Bluetooth functionality without the need for extensive RF experience or knowledge. The module's small footprint, measuring just 22 x 12 x 2.4 mm, allows for integration into space-constrained applications, while still delivering robust performance.

The BM78SPPS5MC2-0002AA operates within the industrial temperature range of -40°C to +85°C, ensuring reliable operation even in harsh environments. This module is equipped with an onboard antenna, which simplifies the design process and reduces the time to market. It also features a UART interface for serial communication, making it easy to connect with microcontrollers or other devices in a system.

With its support for multiple Bluetooth profiles, including SPP (Serial Port Profile) and GATT (Generic Attribute Profile), the BM78SPPS5MC2-0002AA can cater to a variety of applications, such as industrial controls, medical devices, home automation, and portable consumer electronics. Additionally, it comes with a comprehensive set of certifications, including FCC, IC, CE, and Bluetooth SIG, which helps in reducing certification costs for the final product.

The module is also supported by Microchip's extensive development tools and software, including the MPLAB® X Integrated Development Environment (IDE) and the Harmony software framework. These tools help streamline the development process, allowing for rapid prototyping and quicker deployment of Bluetooth-enabled products.

In summary, the BM78SPPS5MC2-0002AA from Microchip Technology is a highly reliable and versatile Bluetooth module that offers an excellent solution for designers seeking to add wireless communication capabilities to their products with minimal design effort and fast time-to-market.
