Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr STMicroelectronics
Package Tape & Reel
Product Status Obsolete
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Fixed
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 1.2V
Current - Output 1.5A
Frequency - Switching 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -30°C ~ 85°C (TJ)
Mounting SMD (SMT)
Package / Case 6-VDFN Exposed Pad
Supplier Device Package 6-DFN (3x3)
Base Product Number ST1S06
Other Names 497-5800-6,497-5800-2,497-5800-1
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1249779-ST1S06PM12R
Ultra Librarian 3D Model Ultra Librarian ST1S06PM12R CAD Model

Description

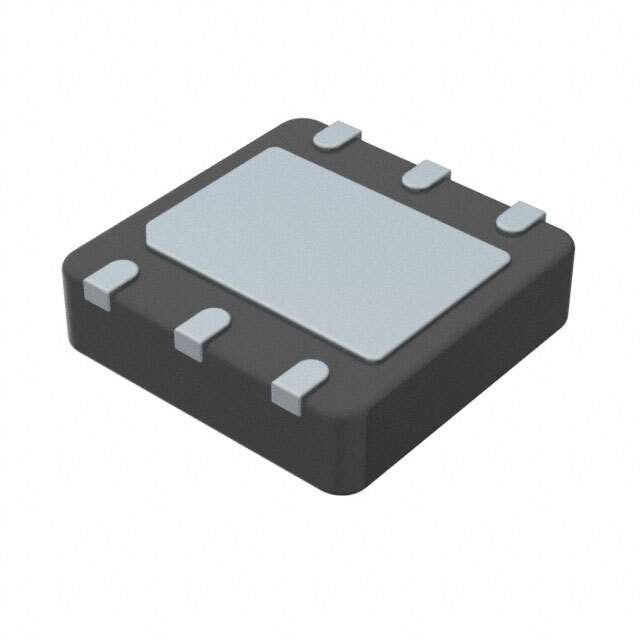

ST1S06PM12R - Step-Down DC-DC Converter by STMicroelectronics

The ST1S06PM12R is a highly efficient, monolithic synchronous step-down DC-DC converter produced by STMicroelectronics. It is designed to deliver a constant, stable output voltage with an input range that makes it suitable for a wide array of applications, including but not limited to consumer electronics, networking devices, and embedded systems.

Key Features

  • Adjustable Output Voltage: This converter offers an adjustable output voltage that can be set from 0.8V to Vin, ensuring compatibility with various low-voltage digital products.
  • High Efficiency: With synchronous rectification and a quiescent current of just 2.5mA, the ST1S06PM12R provides an energy-efficient solution, which is crucial for battery-powered devices.
  • Power Saving Mode: It includes a power-saving mode that enhances efficiency at light loads, making it an ideal choice for portable applications where battery life is paramount.
  • Thermal Protection: The device is equipped with thermal shutdown protection, safeguarding the system from damage due to excessive heat.
  • Peak Current Mode Control: The peak current mode control offers excellent transient response, ensuring stable operation during load changes.
  • Frequency Synchronization: It allows for frequency synchronization to an external clock, which can help to reduce electromagnetic interference (EMI) in sensitive applications.

Applications

The versatility of the ST1S06PM12R makes it an excellent choice for a wide range of applications, including:

  • Portable and battery-powered devices
  • Set-top boxes, DVD players, and other consumer electronics
  • Networking and telecommunication equipment
  • Embedded systems

With its compact size and high level of integration, the ST1S06PM12R minimizes the need for external components, which can simplify the design and reduce the overall bill of materials for product development. This DC-DC converter is a reliable and cost-effective solution for designers looking to optimize power management in their next project.
