The TPS56C215RNNR is a state-of-the-art, synchronous step-down voltage converter designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This high-performance device is optimized for efficiency, reliability, and footprint, making it an ideal choice for a wide array of power management applications.

Key Features

• High Efficiency: The TPS56C215RNNR boasts an impressive efficiency level, thanks to its synchronous buck design, which reduces power loss by minimizing the voltage drop across the switching transistors.
• Adjustable Switching Frequency: Users can adjust the switching frequency from 400 kHz to 1.2 MHz, allowing for flexibility in balancing efficiency and component size.
• Integrated Power MOSFETs: This device includes high-side and low-side MOSFETs, which are optimized for low conduction and switching losses, further enhancing efficiency.

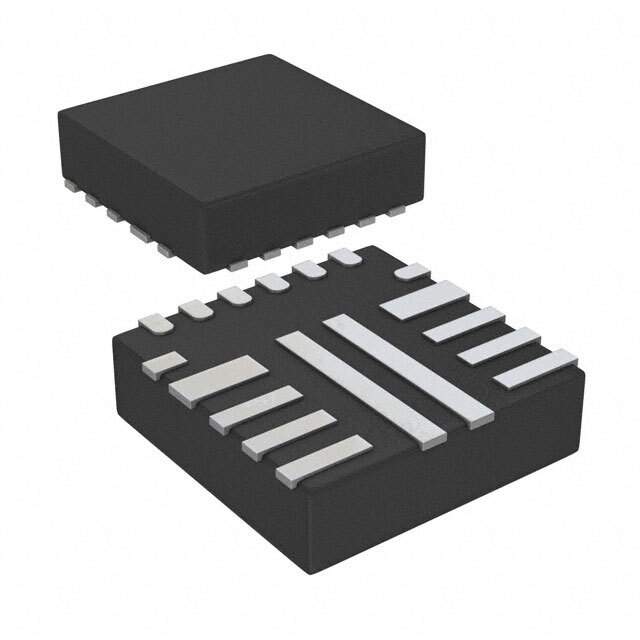

• Compact Footprint: The TPS56C215RNNR comes in a small 16-pin VQFN (RNN) package, which is ideal for space-constrained applications.
• Protection Features: It is equipped with a suite of protection features including over-current, over-voltage, under-voltage, and thermal shutdown, ensuring the longevity and reliability of both the converter and the system it powers.

Applications

The versatility of the TPS56C215RNNR makes it suitable for a diverse range of applications, including but not limited to:

• Telecommunications Equipment
• Networking Switches and Routers
• Enterprise Servers and Storage Systems
• Industrial Power Supplies
• Point-of-Load (POL) Conversions

Technical Specifications

In conclusion, the TPS56C215RNNR from Texas Instruments is a robust, efficient, and versatile voltage converter solution that addresses the demanding needs of modern electronic systems. Its advanced features and comprehensive protection mechanisms make it a smart choice for designers looking to enhance system performance and reliability.
