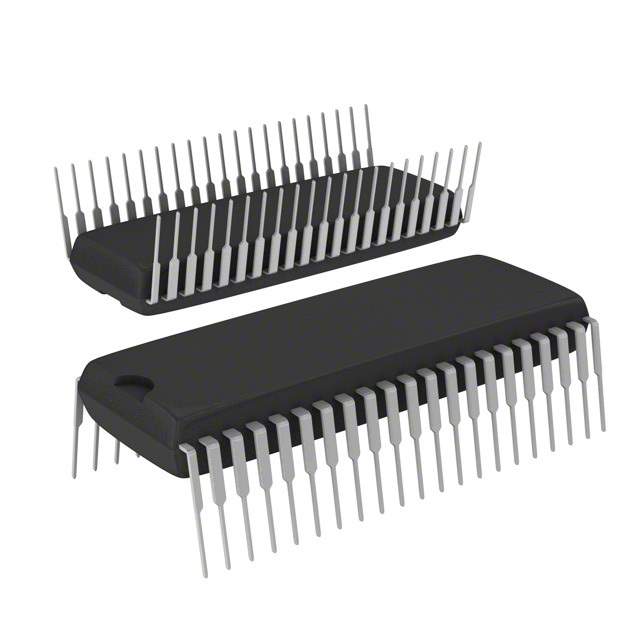

ST72C334J4B6 Microcontroller by STMicroelectronics

The ST72C334J4B6 is a robust 8-bit microcontroller from the reputable STMicroelectronics, designed to offer a perfect blend of performance and efficiency for a wide range of embedded applications. This high-quality MCU is based on the industry-proven ST7 core, providing a versatile set of features to meet the demands of complex control tasks in both industrial and consumer products.

Featuring a maximum CPU frequency of 8 MHz, the ST72C334J4B6 is capable of executing instructions quickly and efficiently, making it ideal for time-sensitive operations. The device comes with 16KB of on-chip Flash memory, which is ample space for storing application code and data. Additionally, the microcontroller includes 384 bytes of RAM, ensuring smooth processing and data handling capabilities.

The ST72C334J4B6 is equipped with a rich set of peripherals that enhance its functionality and ease of integration into various systems. It includes:

• 26 I/O ports that are configurable, allowing for flexible connection to other components and custom hardware configurations.
• An 8-channel, 10-bit analog-to-digital converter (ADC) that enables the microcontroller to interface with analog sensors and convert their readings into digital values for processing.
• Two 16-bit timers that are indispensable for precise event timing and pulse generation.
• A synchronous serial communication (SPI) interface for high-speed data exchange with other digital devices.
• An I2C bus interface, facilitating communication with other ICs and peripherals in a multi-device network.

The device also features an in-circuit debugging capability, which allows developers to troubleshoot and optimize their applications in real-time, significantly reducing development time and enhancing product reliability. The ST72C334J4B6 operates within a voltage range of 3.3V to 5.5V, making it compatible with a variety of power supply configurations and ensuring its adaptability to different operating environments.

STMicroelectronics provides comprehensive support for the ST72C334J4B6, including development tools, software libraries, and detailed documentation. This ensures that engineers can maximize the potential of this microcontroller in their embedded solutions, whether for automation systems, consumer electronics, or automotive applications.
