Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series ST7
Package Tray
Product Status Obsolete
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 13
Program Memory Size 1.5KB (1.5K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 128 x 8
Supply Voltage - Operating 2.4V ~ 5.5V
Data Converters A/D 5x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 20-VQFN Exposed Pad
Supplier Device Package 20-QFN (6x5)
Base Product Number ST7FL
Other Names 497-5631
Standard Package 490
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1263212-ST7FLITE09F0U6
Ultra Librarian 3D Model Ultra Librarian ST7FLITE09F0U6 CAD Model

Description

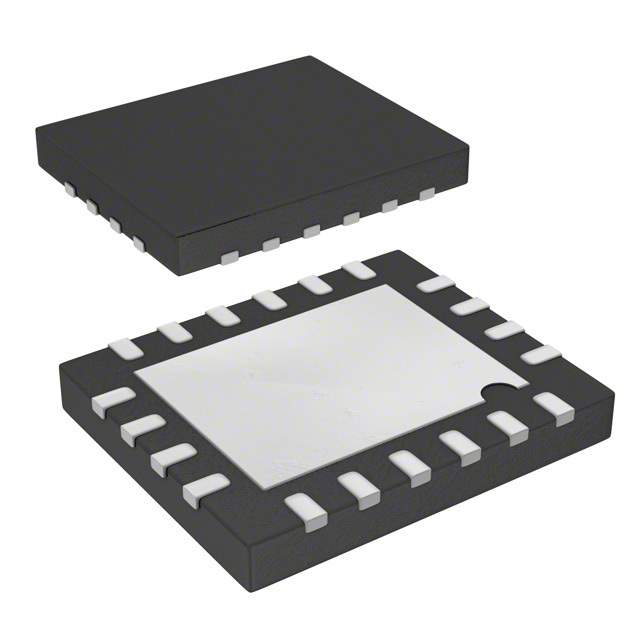

ST7FLITE09F0U6 Microcontroller by STMicroelectronics

The ST7FLITE09F0U6 is a highly integrated microcontroller from STMicroelectronics, tailored for a wide range of applications requiring a balance between performance, power efficiency, and cost-effectiveness. This 8-bit MCU is based on the industry-proven ST7 architecture, designed to offer an optimal solution for embedded systems in automotive, industrial control, and consumer electronics segments.

At the heart of the ST7FLITE09F0U6 is a high-performance 8-bit core running at a maximum frequency of 8 MHz, which provides the computational power required for complex tasks. The device comes with 8 KB of Flash memory, which is ideal for storing firmware and application code, and 1 KB of RAM for efficient data manipulation. The Flash memory also supports in-circuit programming and in-application programming, enabling easy firmware updates and reducing development time.

The microcontroller features a rich set of peripherals that enhance its versatility. It includes a 10-bit analog-to-digital converter (ADC) with up to 5 multiplexed channels, allowing for precise measurement of analog signals. It also has a range of timers, including an 8-bit and a 16-bit timer, which are essential for tasks such as PWM generation and time-based control.

For communication purposes, the ST7FLITE09F0U6 is equipped with a synchronous serial communication (SSC) interface. This interface can be used for connecting to other microcontrollers, sensors, and external peripherals, enabling the exchange of data in real-time. Additionally, the device includes a Universal Serial Bus (USB) interface, which simplifies the connection to PCs and other USB-enabled devices.

Security and system reliability are also key features of this microcontroller. It includes an in-built watchdog timer that helps to ensure the system remains operational by resetting the MCU in case of software errors or malfunctions.

The ST7FLITE09F0U6 operates within a wide voltage range of 3.0V to 5.5V, making it suitable for battery-operated devices as well as for those powered by standard power supplies. Its low power consumption modes ensure energy efficiency, which is crucial for portable and power-sensitive applications.

With its robust set of features and capabilities, the ST7FLITE09F0U6 from STMicroelectronics is an excellent choice for designers looking to optimize their embedded systems with a reliable and versatile microcontroller solution.
