Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series ST7
Packaging Tube
Part Status Obsolete(EOL)
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity I²C
Peripherals LVD, POR, PWM, WDT
Number of I/O 24
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 384 x 8
Supply Voltage 4.5 V ~ 5.5 V
Data Converters A/D 10x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)

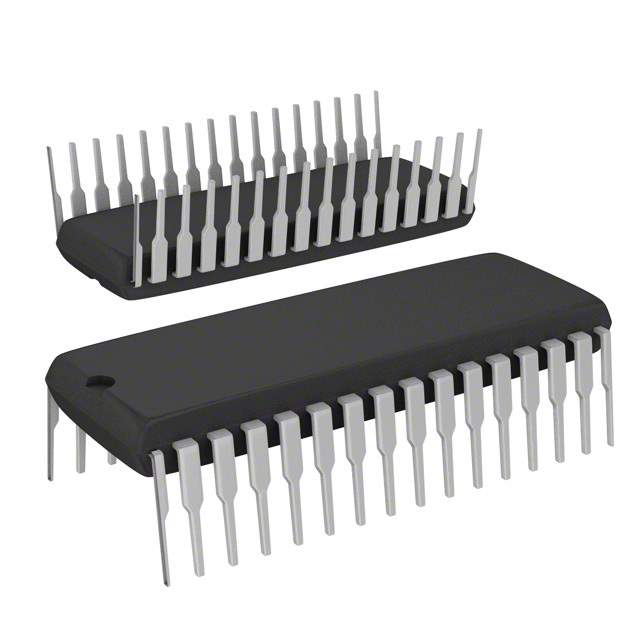

Package 32-SDIP (0.400", 10.16mm)
Win Source Part Number 795568-ST7FOXK1B6
Popularity Medium
Supply and Demand Status Limited
Family Name ST7FOXK1
Introduction Date March 07, 2003
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ST7FOXK1B6 CAD Model

Description

The ST7FOXK1B6 is a robust and versatile microcontroller from STMicroelectronics, designed to offer a perfect blend of performance and power efficiency for a wide range of applications. This microcontroller is part of the ST7 family, which is renowned for its high integration, real-time capabilities, and cost-effectiveness, making it suitable for both industrial and consumer product use.

Key Features

  • Core: The ST7FOXK1B6 is built around an industry-standard 8-bit core, operating at a maximum frequency of 16 MHz. Its architecture is optimized for low power consumption and high-speed processing.
  • Memory: It comes with 8 Kbytes of Flash program memory, which is highly reliable and offers up to 10,000 write/erase cycles. Additionally, the microcontroller includes 256 bytes of RAM and 128 bytes of EEPROM for data storage.
  • I/O Ports: This microcontroller features 20 I/O pins that provide flexibility for interfacing with external devices. These I/O lines are highly configurable and support various functions, including timers, counters, and interrupt capabilities.
  • Peripherals: The ST7FOXK1B6 includes a range of integrated peripherals such as an 8-bit timer, watchdog timer, and an SPI interface for serial communication. These built-in features enable the development of complex applications without the need for additional components.
  • Power Management: With multiple low-power modes including Halt and Active-Halt, the ST7FOXK1B6 ensures efficient power management, which is critical for battery-operated devices.
  • Analog Features: The microcontroller is equipped with an 8-channel, 10-bit analog-to-digital converter (ADC), allowing it to process analog signals and interface with sensors directly.
  • Temperature Range: The device operates over an extended temperature range from -40°C to +85°C, making it suitable for harsh environmental conditions.
  • Package: The ST7FOXK1B6 is available in a 32-pin LQFP package, providing a compact footprint for space-constrained applications.

Applications

The ST7FOXK1B6 microcontroller is ideal for a variety of applications, including but not limited to automotive systems, home appliances, alarm systems, power tools, and battery management systems. Its rich set of features and peripherals supports the development of sophisticated and reliable products in a cost-effective manner.

For developers and engineers looking for a microcontroller that balances power, performance, and peripheral integration, the ST7FOXK1B6 from STMicroelectronics presents itself as a compelling option.
