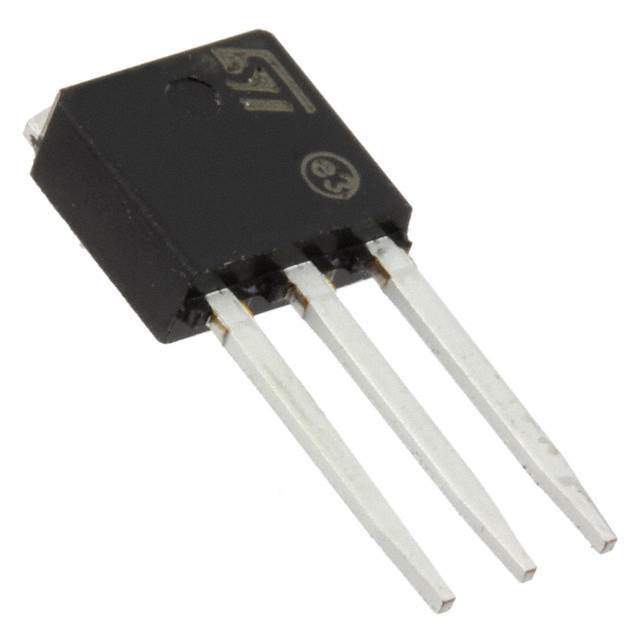

STD1NK60-1 - N-channel 600 V, 1 Ω, 1 A SuperMESH™ Power MOSFET

The STD1NK60-1 is a high voltage N-channel Power MOSFET device from STMicroelectronics that is part of the SuperMESH™ family, known for its excellent RDS(on) per area, reduced gate charge, and low capacitance. This MOSFET is designed to offer superior performance in terms of efficiency and reliability for a wide range of high-voltage applications.

Key Features

• High Voltage Capability: With a drain-source voltage of 600V, the STD1NK60-1 is suitable for high voltage switching applications and can handle continuous currents up to 1A.
• Low On-Resistance: The device offers an extremely low on-resistance of 1 Ω, which enhances its efficiency by minimizing conduction losses.
• Reduced Gate Charge: A low gate charge ensures that the switching losses are minimized, which is crucial for high-frequency operations.
• Zener-Protected Gate: The inclusion of a built-in Zener diode protects the gate from electrostatic discharges and voltage spikes, ensuring the longevity and reliability of the MOSFET.

Applications

The STD1NK60-1 is versatile and can be used in a variety of applications. Its robustness makes it ideal for:

• Switching applications
• Power supplies
• Power management solutions
• Motor control circuits
• Lighting systems
• High-efficiency converters

Product Advantages

STMicroelectronics' SuperMESH™ technology combines the advantages of reduced on-resistance and fast switching speed with the ruggedness and reliability that are hallmarks of ST's MOSFET portfolio. The STD1NK60-1 is no exception, offering a compact and energy-efficient solution for designers who are looking to optimize their high-voltage power conversion systems.

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The STD1NK60-1 has undergone rigorous testing and quality control measures to ensure that it meets the stringent requirements of the industry. This product is a testament to ST's dedication to providing customers with reliable and long-lasting power semiconductor solutions.
