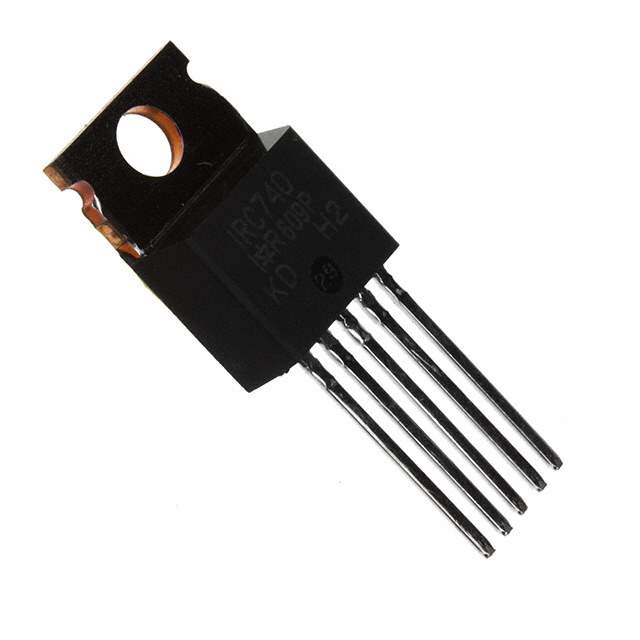

The IRC740 is a power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by International Rectifier (now Infineon Technologies). It's designed for high-voltage, high-speed switching applications. MOSFETs are widely used in power supplies, motor control, and other applications requiring efficient power control.

Applications

• Switching power supplies
• Motor control
• Lighting control (e.g., LED dimming)
• DC-DC converters
• Uninterruptible power supplies (UPS)
• High-frequency inverters

Features

• High voltage rating: Typically rated for 400V to 600V, allowing for use in high-voltage applications.
• Low on-resistance (RDS(on)): Minimizes power loss due to conduction, improving efficiency.
• Fast switching speed: Enables efficient switching at high frequencies.
• Avalanche ruggedness: Withstands high avalanche energy, enhancing reliability.
• Simple drive requirements: Requires minimal gate drive circuitry.
• Lead-free and RoHS compliant: Environmentally friendly and compliant with industry standards.

Benefits

• Increased efficiency: Low RDS(on) reduces power dissipation, improving overall system efficiency.
• Reduced heat generation: Lower power loss translates to less heat, simplifying thermal management.
• Improved reliability: Avalanche ruggedness enhances the MOSFET's ability to withstand voltage spikes.
• Simplified design: Easy to drive, simplifying circuit design.
• Cost-effective: Provides a high-performance switching solution at a competitive price.

Additional Details

The IRC740 is typically an N-channel enhancement mode MOSFET. It is available in various packages, such as TO-220, TO-220FP, and D2PAK. The specific RDS(on) value depends on the exact model, but it is generally in the range of a few ohms or less. The gate threshold voltage (VGS(th)) is the voltage required to turn the MOSFET on. The input capacitance (Ciss) and output capacitance (Coss) are important parameters for high-frequency switching applications. The device's operating temperature range is typically from -55°C to +150°C. The maximum drain current (ID) is the maximum current the MOSFET can handle. The power dissipation (PD) is the maximum power the MOSFET can dissipate without exceeding its maximum junction temperature. These devices are frequently used in applications where energy efficiency is a primary design consideration. The device's fast switching capabilities make it suitable for high-frequency applications, while its robust construction ensures reliable performance in demanding environments.
