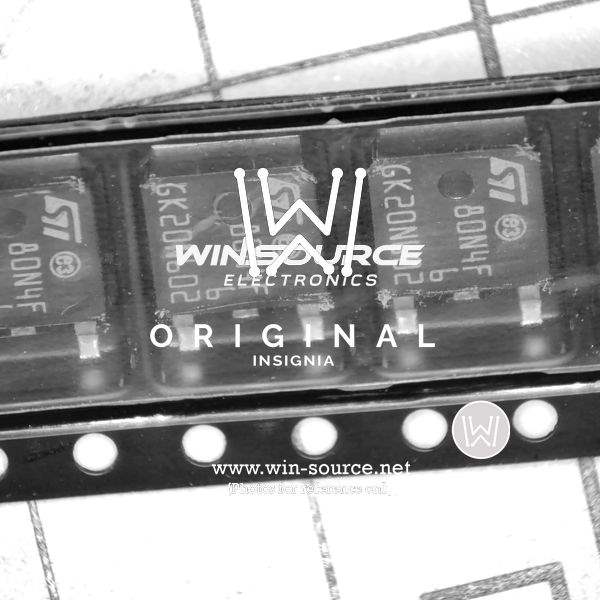

Product Overview: STD80N4F6 - STMicroelectronics

The STD80N4F6 is a high-performance, N-channel Power MOSFET presented by STMicroelectronics, a global semiconductor leader known for its state-of-the-art electronic components. This Power MOSFET is designed to deliver the efficiency and reliability required in a wide range of power management and switching applications.

Key Features

• Low On-Resistance (R<sub>DS(on)): The device boasts an exceptionally low drain-source on-resistance, which translates to reduced conduction losses and enhances overall efficiency in applications.
• High Current Capability: With a continuous drain current (I<sub>D) rating of up to 80A, the STD80N4F6 can handle high current loads, making it suitable for demanding power applications.
• High Switching Speed: The fast switching speed of the STD80N4F6 minimizes switching losses and is ideal for high-frequency power switching circuits.
• Enhanced Thermal Performance: The device is encapsulated in a robust package that provides excellent thermal performance, ensuring reliability even under high temperature operating conditions.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, ensuring the device can withstand tough conditions without failure.

Applications

The STD80N4F6 is versatile and can be used in various applications, including:

• Power supplies
• DC-DC converters
• Motor control systems
• Automotive applications
• Switching regulators
• Power management solutions

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The STD80N4F6 is no exception, as it is manufactured in ISO/TS16949 certified facilities and is compliant with the stringent RoHS and Halogen-Free requirements, ensuring environmental friendliness and suitability for use in sensitive applications.

Conclusion

Whether it's for power conversion, load switching, or motor driving, the STD80N4F6 offers a blend of efficiency, reliability, and performance. Its robust design and superior electrical characteristics make it a preferred choice for engineers and designers looking to optimize their power management systems.
