Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Power Management
Function Motor Controller/Driver
Utilized IC / Part L6390, STGP10NC60KD
Supplied Contents Board(s)
Other Names 497-10370,STEVALIHM023V1,1805-STEVAL-IHM023V1,-497-10370
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8473.30.1180
Win Source Part Number 1284504-STEVAL-IHM023V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IHM023V1 CAD Model

Description

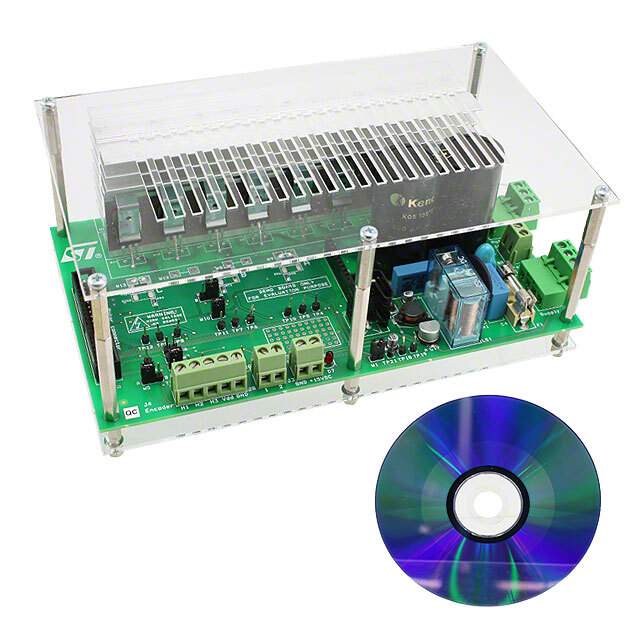

The STEVAL-IHM023V1 from STMicroelectronics is a sophisticated and versatile low voltage three-phase inverter power board designed to drive brushless DC and permanent magnet synchronous motors. This power board is an integral component for applications such as HVAC systems, drones, electric bicycles, and other low voltage motor control scenarios.

Key Features

  • Based on the STGIPN3H60 – SLLIMM™-nano (small low-loss intelligent molded module) 3-phase IGBT inverter
  • Operates at a voltage range from 10.5 V to 20 V
  • Maximum output current of 2 A
  • Embedded ST-LINK/V2 for easy development and debugging
  • Overcurrent and overtemperature protections for enhanced safety
  • Compatible with a wide range of microcontrollers for flexible control
  • Onboard potentiometer for speed control
  • User-friendly interfaces and software
  • RoHS compliant and designed for energy efficiency

Application Domains

The STEVAL-IHM023V1 is ideal for a broad spectrum of low voltage motor control applications, including:

  • Home appliances such as washing machines and refrigerators
  • Industrial automation systems
  • Electric fans and other HVAC equipment
  • Battery-powered vehicles like e-bikes and scooters
  • Unmanned aerial vehicles (UAVs) or drones

Design Support

STMicroelectronics provides extensive design support for the STEVAL-IHM023V1, including reference design files, application notes, and technical documentation to facilitate rapid development and integration into your projects. With this power board, engineers and designers can significantly reduce time-to-market and enhance the reliability and performance of their motor control solutions.

Environmental and Quality Certifications

The STEVAL-IHM023V1 is manufactured with a commitment to quality and environmental sustainability, meeting the RoHS directive and ensuring compatibility with lead-free soldering processes.
