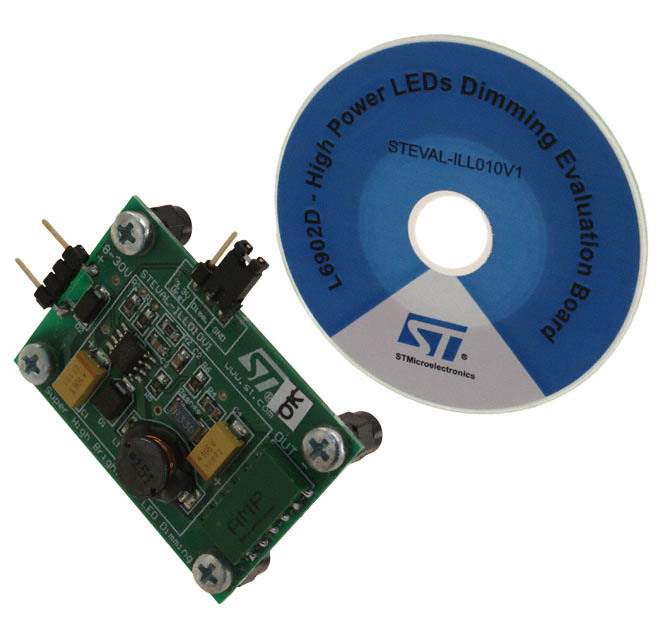

The STEVAL-ILL010V1 from STMicroelectronics is a highly efficient evaluation board designed specifically for LED lighting applications. It showcases the performance of the L6562A, a transition-mode Power Factor Corrector (PFC) controller, and the HVLED815PF, an advanced LED driver, both of which are optimized to deliver a constant current for driving LEDs.

Key Features

• Integrated L6562A transition-mode PFC controller for high Power Factor and low THD.
• Equipped with HVLED815PF LED driver for precise constant current output.
• Wide-range universal input voltage from 90 to 265 VAC, suitable for a variety of geographic locations.
• Output current regulation without primary sense and feedback.
• High efficiency with minimized power losses, ideal for energy-saving applications.
• Dimmable functionality compatible with leading-edge and trailing-edge TRIAC dimmers.
• Overcurrent, overvoltage, and thermal protection for enhanced safety and reliability.
• Compact and flexible design, easily integrated into a variety of LED lighting solutions.

Applications

The STEVAL-ILL010V1 is perfect for those looking to develop or evaluate LED lighting systems such as:

• Residential and commercial lighting.
• Street lighting.
• Architectural lighting.
• Industrial lighting.
• Emergency lighting.

This evaluation board is an exemplary tool for engineers and designers to explore the capabilities of STMicroelectronics' LED driver technology. It provides a robust platform for testing and prototyping, ensuring a quick and efficient design process for LED lighting systems. With its high power factor, low total harmonic distortion, and compatibility with TRIAC dimmers, the STEVAL-ILL010V1 offers a versatile solution that meets the demands of modern lighting applications.

For more information, datasheets, and technical support, visit the STMicroelectronics website or contact their support team.
