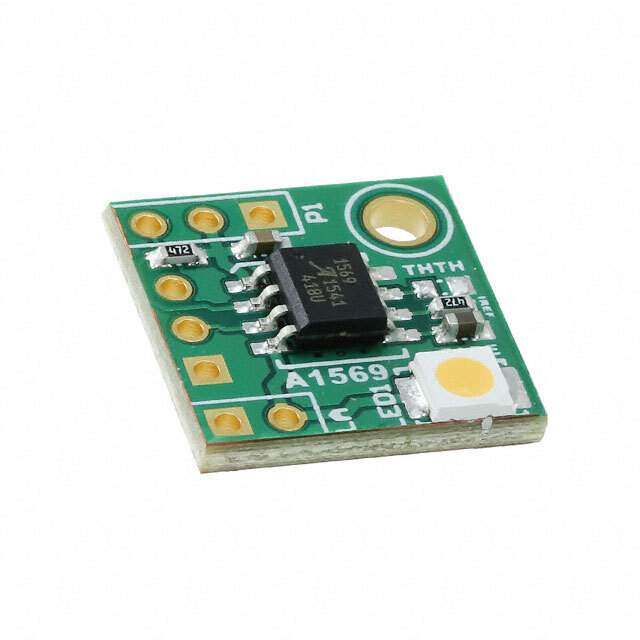

ASEK1569KLJ-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK1569KLJ-T-DK

Part No ASEK1569KLJ-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Board Mount LED Drivers
Description EVAL BOARD FOR A1569K / A1569K 1, Non-Isolated Outputs LED Driver Evaluation Board
Datasheet
ASEK1569KLJ-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr Allegro MicroSystems
Package Bulk
Current - Output / Channel 150mA
Outputs and Type 1, Non-Isolated
Voltage - Input 7V ~ 24V
Supplied Contents Board(s)
Utilized IC / Part A1569K
Base Product Number ASEK15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1347262-ASEK1569KLJ-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK1569KLJ-T-DK CAD Model

Description

The ASEK1569KLJ-T-DK is an evaluation board designed for LED drivers.

  • Voltage Input: 7V to 24V
  • Current Output: 150mA
  • Package: Bulk
  • Standard Package: 1
  • IC/Part: A1569K
  • Output Isolation: Non-Isolated
  • Number of Outputs: 1
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8473.30.1180
  • Manufacturer: Allegro MicroSystems
  • Base Product Number: ASEK15

You May Also Be Interested in

Picture of OM13483UL
OM13483UL
NXP / Nexperia
PCA9955 I2C LED DEMOBOARD / PCA9955 16, Non-Isolated Outputs LED Driver Evaluation Board
Need more? Email Us
CCR120PS3AGEVB Real Image
CCR120PS3AGEVB
ON Semiconductor
EVAL BOARD 120V CCR LED DRIVER / NSIC2030B, NSIC2050B 1, Non-Isolated Outputs LED Driver Evaluation Board
Need more? Email Us
STEVAL-LLL007V1 Real Image
STEVAL-LLL007V1
STMicroelectronics
Need more? Email Us
STEVAL-ILL068V1 Real Image
STEVAL-ILL068V1
STMicroelectronics
Need more? Email Us

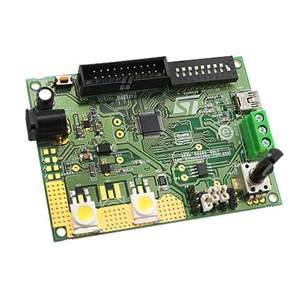

STEVAL-ILL030V1 Real Image
