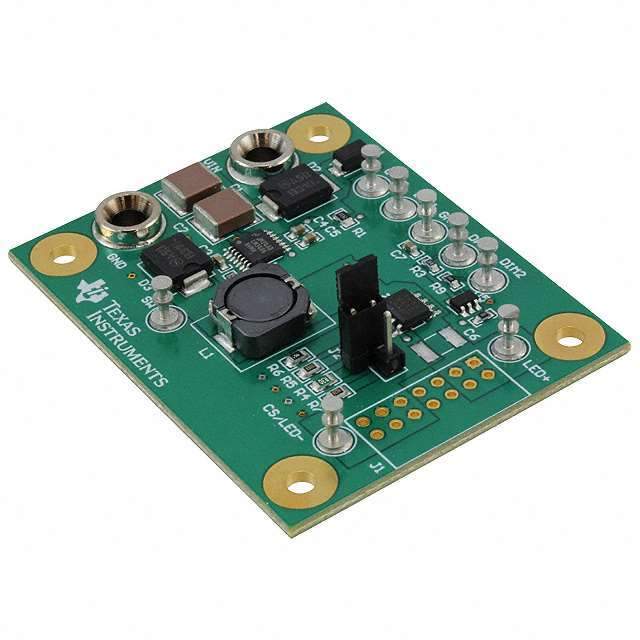

LM3406HVEVAL/NOPB Evaluation Board by Texas Instruments

The LM3406HVEVAL/NOPB is a meticulously designed evaluation board from Texas Instruments (TI), created specifically for the assessment and performance testing of the LM3406HV series of buck regulator integrated circuits. This evaluation platform is a cornerstone for engineers and designers who aim to explore the capabilities, efficiency, and versatility of the LM3406HV in driving power LEDs.

The LM3406HV is a monolithic, high voltage, low-side N-channel MOSFET controller ideal for driving a series string of high power, high brightness LEDs. With a wide input voltage range of 6V to 75V, it is perfectly suited for a variety of LED lighting applications, including automotive, industrial, and general illumination.

The evaluation board comes equipped with several key features that enhance its utility and ease of use:

• Adjustable Output Current: Users can set the desired output current to drive LEDs with varying power requirements, ensuring versatility across different applications.
• Thermal Protection: The board includes over-temperature protection, safeguarding the system against excessive heat that could potentially damage the LEDs or the driver itself.
• Dimming Capability: The LM3406HVEVAL/NOPB supports both analog and PWM dimming, providing flexibility in controlling the brightness levels of the LEDs.
• Efficiency: The high efficiency of the LM3406HV IC ensures minimal power loss during operation, leading to energy savings and a reduced thermal footprint.

Designed for simplicity, the evaluation board allows for immediate plug-and-play functionality. It comes with pre-configured settings, but it also allows for easy modifications to accommodate a wide range of LEDs and power configurations. Comprehensive documentation and support from Texas Instruments ensure that users can maximize the potential of the LM3406HV IC and tailor it to their specific needs.

Whether you are a seasoned professional or a newcomer to LED driver technology, the LM3406HVEVAL/NOPB evaluation board is an invaluable tool for gaining insight into the performance and application of the LM3406HV series. Its robust design, coupled with the quality and support of Texas Instruments, makes this evaluation board a must-have for any serious development in the LED lighting space.
