Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 20mA
Outputs and Type 12, Non-Isolated
Voltage - Output 5V
Features Dimmable
Voltage - Input 2.6V ~ 5V
Supplied Contents Board(s)
Utilized IC / Part LED1202
Base Product Number STEVAL
Other Names 497-19036
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1283857-STEVAL-LLL007V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-LLL007V1 CAD Model

Description

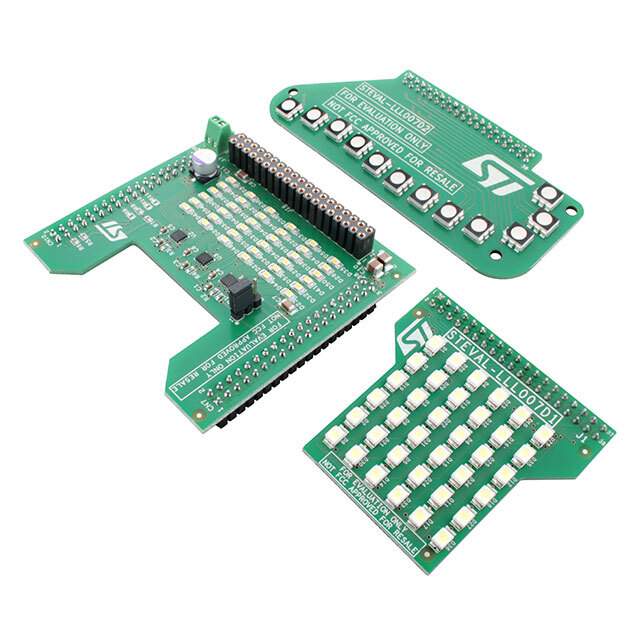

STEVAL-LLL007V1 Evaluation Board from STMicroelectronics

The STEVAL-LLL007V1 is a state-of-the-art evaluation board designed by STMicroelectronics, tailored for the testing and development of advanced LED lighting solutions. This evaluation platform is part of ST's portfolio of evaluation tools, which are intended to assist engineers in streamlining the development process for lighting applications by providing a comprehensive and flexible environment to work with.

At the heart of the STEVAL-LLL007V1 is ST's cutting-edge LED driver technology, which is designed to deliver high efficiency and accuracy in controlling the brightness and color of LED arrays. The board supports a wide range of input voltages, making it suitable for various power supply scenarios, and it is compatible with multiple LED configurations, providing designers with the flexibility to adapt the board to their specific project requirements.

The evaluation board comes equipped with numerous features that make it an ideal platform for experimenting with and fine-tuning LED systems. It includes overcurrent, overvoltage, and thermal protection circuits to ensure the longevity and reliability of the LEDs and the driver circuitry. Additionally, the board provides options for dimming control, enabling the creation of dynamic lighting effects and energy-saving modes.

Connectivity on the STEVAL-LLL007V1 is also a key focus, with interfaces that allow for easy integration with external control systems. This enables the use of the board in more complex lighting networks and smart lighting systems, which are becoming increasingly prevalent in both commercial and residential settings.

The STEVAL-LLL007V1 is not only a powerful tool for R&D but also serves as an educational platform for those looking to understand the intricacies of LED driver design and operation. The board is accompanied by comprehensive documentation, including datasheets, application notes, and design guides, which provide valuable insights and step-by-step instructions for getting the most out of the evaluation board.

In summary, the STEVAL-LLL007V1 from STMicroelectronics is an exceptional evaluation board for professionals and enthusiasts alike, offering a robust platform for the development and testing of innovative LED lighting solutions.
