Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 3A
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 3V ~ 18V
Supplied Contents Board(s)
Utilized IC / Part LED2000
Base Product Number STEVAL
Other Names 497-14132
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1283856-STEVAL-ILL051V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL051V2 CAD Model

Description

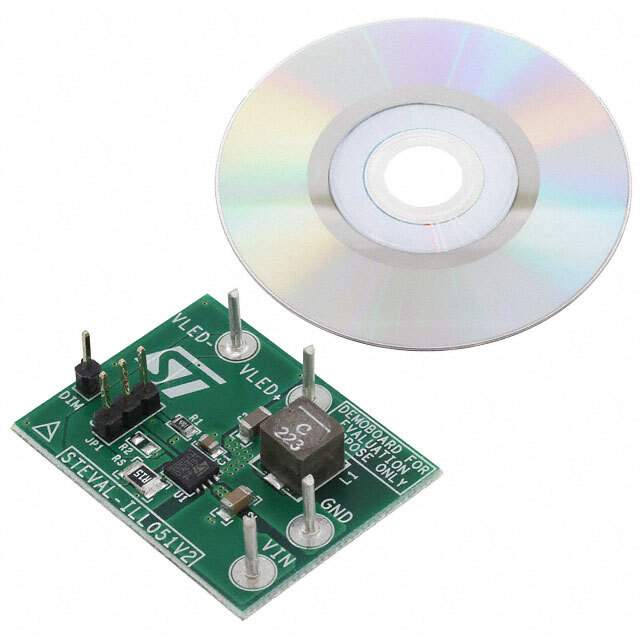

STEVAL-ILL051V2 LED Array Driver Evaluation Board

The STEVAL-ILL051V2 from STMicroelectronics is a highly efficient evaluation board designed for driving LED arrays. This board is primarily aimed at professionals and enthusiasts looking to develop and test LED lighting solutions. It is built around the STP04CM05 LED driver, which is capable of providing constant current to ensure uniform brightness across all LEDs in the array.

The evaluation board is a perfect tool for experimenting with features such as dimming control and fault detection, which are essential in creating sophisticated lighting systems. The onboard STP04CM05 driver supports a wide input voltage range, making the STEVAL-ILL051V2 versatile for various applications, from architectural and street lighting to signal and signage applications.

  • Efficient LED Driving: The board ensures high efficiency and low power consumption, which is crucial for sustainable and cost-effective lighting solutions.
  • Dimming Capabilities: It includes pulse-width modulation (PWM) dimming, which allows for precise control over the brightness of the LED array.
  • Fault Detection: The evaluation board comes with built-in open LED and short-circuit LED detection features, enhancing the reliability and safety of the lighting system.
  • Thermal Protection: It is equipped with thermal shutdown protection to prevent overheating, thereby prolonging the lifespan of the LEDs.
  • Flexibility: The STEVAL-ILL051V2 is compatible with a range of LED types, offering flexibility in design and prototyping.

The board's layout is optimized for excellent thermal performance and minimal electromagnetic interference (EMI), which is critical in maintaining the integrity of lighting systems in sensitive environments. Additionally, the STEVAL-ILL051V2 evaluation board comes with a comprehensive set of documentation, including schematics, bill of materials, and application notes, to assist developers in rapidly integrating the board into their projects.

With its robust design and advanced features, the STEVAL-ILL051V2 is an ideal choice for professionals looking to push the boundaries of LED lighting technology. Whether it's for general lighting or specialized applications, this evaluation board from STMicroelectronics provides a solid foundation for innovation and development.
