Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Outputs and Type 16, Non-Isolated
Supplied Contents Board(s)
Utilized IC / Part STP16CPC26
Base Product Number STEVAL
Other Names 497-18098,-1138-STEVAL-LLL005V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1283865-STEVAL-LLL005V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-LLL005V1 CAD Model

Description

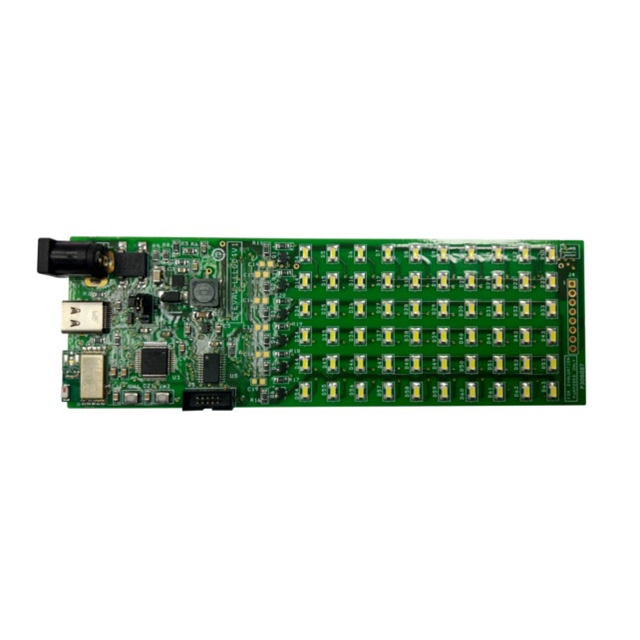

The STEVAL-LLL005V1 from STMicroelectronics is a sophisticated evaluation board designed for driving LED arrays with high precision and efficiency. This board is part of ST's evaluation platform, which showcases the capabilities of their LED array driver ICs in various lighting applications.

Key Features

  • Integrated Power Management: The board includes an efficient power management system that ensures optimal power delivery to the LEDs, maximizing their performance and lifespan.
  • Dimming Capabilities: With advanced dimming features, the STEVAL-LLL005V1 allows for smooth and flicker-free control over the brightness of the LED array, which is essential for creating the desired ambiance in lighting applications.
  • Thermal Protection: The evaluation board is equipped with thermal protection mechanisms to prevent overheating, ensuring the safety and reliability of the LED array under various operating conditions.
  • Flexible Configuration: Users can configure the board for different LED array setups, making it a versatile tool for testing and prototyping a wide range of lighting solutions.
  • Connectivity: The board can be connected to external control units, allowing for integration into larger systems and enabling remote control and monitoring of the LED array.

Applications

The STEVAL-LLL005V1 is ideal for a variety of applications where high-quality LED driving is required. It can be used in:

  • Architectural lighting
  • Street lighting
  • Commercial and retail lighting
  • Emergency lighting
  • General purpose LED lighting

Technical Specifications

The board supports a wide input voltage range and is designed to work with a variety of LED types and configurations. It is built to accommodate rapid prototyping and to facilitate the evaluation of the LED driver's performance in realistic operating conditions.

With its robust design and comprehensive feature set, the STEVAL-LLL005V1 evaluation board is an essential tool for engineers and designers looking to create innovative LED lighting solutions using STMicroelectronics' technology.
