Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 2.7A
Outputs and Type 1, Isolated
Voltage - Output 48V
Voltage - Input 85 ~ 305 VAC
Supplied Contents Board(s)
Utilized IC / Part L6562AT, L6599AT
Base Product Number STEVAL
Other Names -1138-STEVAL-ILL053V2,497-18363
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1283859-STEVAL-ILL053V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL053V2 CAD Model

Description

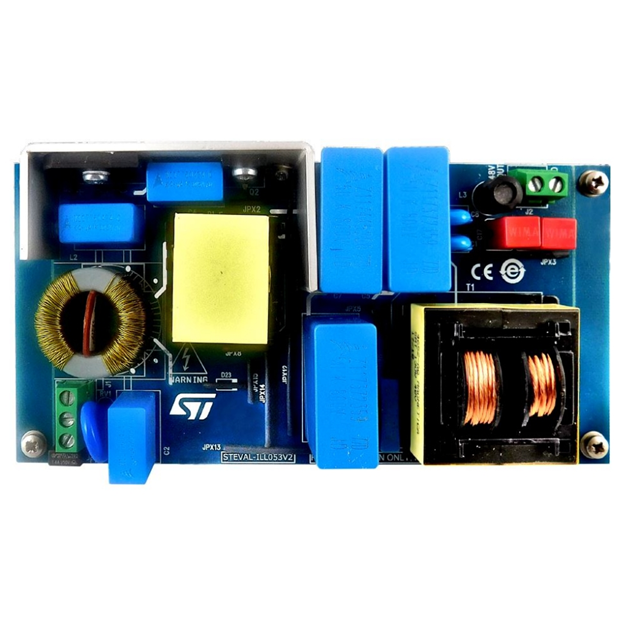

STEVAL-ILL053V2 - LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL053V2 is a sophisticated evaluation board designed by STMicroelectronics, tailored for driving LEDs with high efficiency and accuracy. This evaluation board is specifically engineered to demonstrate the capabilities of the LED6001 chip, a step-down monolithic switching regulator designed to source up to 3 A of current for LED driving.

Featuring a wide input voltage range from 4.5 V to 38 V, the STEVAL-ILL053V2 is versatile and suitable for a variety of LED driving applications. It ensures a constant current supply to the LED array, providing high brightness and extending the life of the LEDs. The evaluation board is equipped with dimming control, enabling users to adjust the brightness of the LEDs to their desired level through both analog and PWM dimming signals.

The LED6001 controller integrated on the board includes a fixed frequency PWM control scheme with an internal 250 kHz oscillator, which can be externally adjusted up to 1 MHz. This feature allows for flexibility in balancing efficiency and component size, making the STEVAL-ILL053V2 a practical solution for space-constrained applications.

With built-in open-LED detection, over-temperature protection, and overcurrent protection, the STEVAL-ILL053V2 ensures safe operation under various conditions. The protections are auto-restart enabled, providing an additional layer of reliability for the end application. Moreover, the evaluation board is designed with thermal shutdown to protect the device in extreme conditions.

The STEVAL-ILL053V2's layout is optimized for thermal performance, making it capable of handling high-power LEDs with ease. The board's compact size and comprehensive feature set make it an excellent choice for professionals and hobbyists looking to explore LED lighting solutions or to quickly prototype their LED applications.

In summary, the STEVAL-ILL053V2 from STMicroelectronics is a high-performance, feature-rich evaluation board that showcases the capabilities of the LED6001 driver. It is an invaluable tool for developers seeking to create efficient, reliable, and versatile LED lighting systems.
