Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 700mA
Outputs and Type 1, Non-Isolated
Voltage - Output 60V ~ 105V
Features Dimmable
Voltage - Input 90 ~ 300 VAC
Supplied Contents Board(s)
Utilized IC / Part HVLED001A
Base Product Number STEVAL
Other Names 497-17654,-1138-STEVAL-ILL085V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283827-STEVAL-ILL085V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL085V1 CAD Model

Description

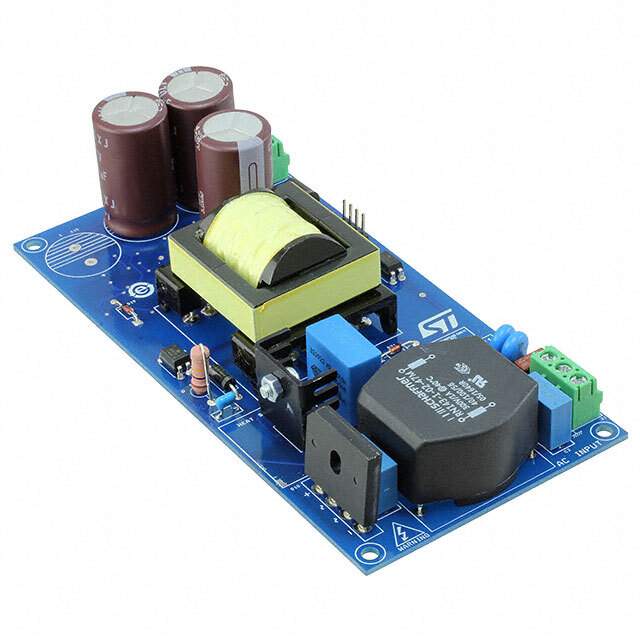

STEVAL-ILL085V1 Product Overview

The STEVAL-ILL085V1 is an innovative, high-efficiency LED array driver system evaluation board from STMicroelectronics, designed to cater to a wide range of lighting applications. This state-of-the-art product showcases the capabilities of the LED6000 step-down monolithic converter, which is optimized for driving an array of high-brightness LEDs with a constant current that can be set through an external resistor.

With a non-isolated DC-DC converter design, the STEVAL-ILL085V1 ensures a high Power Factor (PF) and low Total Harmonic Distortion (THD), making it suitable for power-conscious applications. The board is capable of handling an input voltage range from 6.5V to 48V, which provides flexibility for various usage scenarios and power supply options.

This evaluation board features an adjustable output current through a dedicated resistor, which allows users to tweak the performance based on the requirements of their specific LED configuration. Additionally, the LED6000 integrated on the board comes with a dimming control input, enabling pulse-width modulation (PWM) dimming, which is essential for applications that require variable light intensity.

Thermal protection is also a key aspect of the STEVAL-ILL085V1, with the LED6000 incorporating thermal shutdown to safeguard the system from overheating. The board also includes overvoltage and overcurrent protection features, which contribute to the longevity and reliability of the end application.

For developers and engineers, the STEVAL-ILL085V1 acts as an excellent tool for prototyping and testing LED lighting solutions before moving to full-scale production. Its user-friendly interface and comprehensive documentation facilitate a seamless integration process, reducing development time and accelerating time to market.

In summary, the STEVAL-ILL085V1 from STMicroelectronics is a versatile and robust solution for driving LED arrays with precision and efficiency. Its advanced features and protections make it an ideal choice for developers looking to create sophisticated lighting systems with a focus on performance and safety.
