Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 500mA
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 18V ~ 36V
Supplied Contents Board(s)
Utilized IC / Part LED6000
Base Product Number STEVAL
Other Names 497-16373,-497-16373
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283854-STEVAL-ILL084V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL084V1 CAD Model

Description

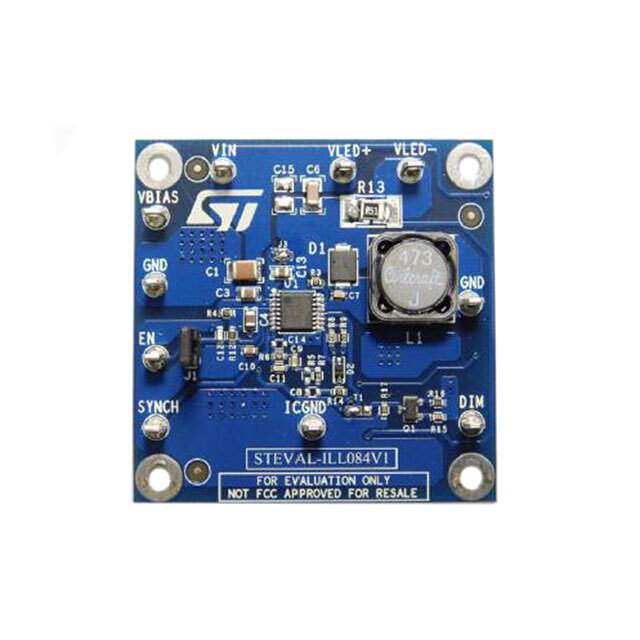

STEVAL-ILL084V1 - LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL084V1 is a sophisticated LED driver evaluation board designed by STMicroelectronics. This board is specifically tailored for driving LEDs with high efficiency and precision. It is a part of ST's evaluation product line that allows designers and engineers to test and validate the performance of their LED designs in real-world applications.

At the heart of the STEVAL-ILL084V1 is the advanced LED6001 chip, a monolithic, step-down, current-mode PWM converter optimized for driving series of LEDs with constant current that can be adjusted through an external resistor. The LED6001 operates from a wide input voltage range from 4.5 V to 38 V, making it versatile for a variety of LED lighting applications.

The board is equipped with numerous features that ensure the optimal performance of LED arrays. It includes under-voltage lockout, thermal shutdown, and overcurrent protection which safeguard the board and the LEDs from various electrical hazards. The PWM dimming input allows for precise brightness control, enhancing the capabilities of the board for different lighting scenarios.

The STEVAL-ILL084V1 is designed with flexibility in mind, supporting both analog and digital dimming methods. This allows for seamless integration into existing lighting systems or for the development of new, innovative lighting solutions. The board's compact size and layout are optimized for minimal noise and easy prototyping.

This evaluation board is an excellent tool for developers looking to create energy-efficient LED lighting solutions. Whether it's for industrial, commercial, or residential applications, the STEVAL-ILL084V1 provides a reliable platform for testing and fine-tuning the performance of LED drivers.

In summary, the STEVAL-ILL084V1 from STMicroelectronics is a high-quality evaluation board that offers designers a practical and efficient way to assess and perfect their LED lighting systems. Its robust protection features, flexible control options, and compatibility with a wide range of input voltages make it a valuable asset for any LED lighting project.
