Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Outputs and Type 1, Non-Isolated
Supplied Contents Board(s)
Utilized IC / Part STCF07
Other Names 497-12069,STEVALTLL009V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3B992
HTSUS 8473.30.1180
Win Source Part Number 1283846-STEVAL-TLL009V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL009V1 CAD Model

Description

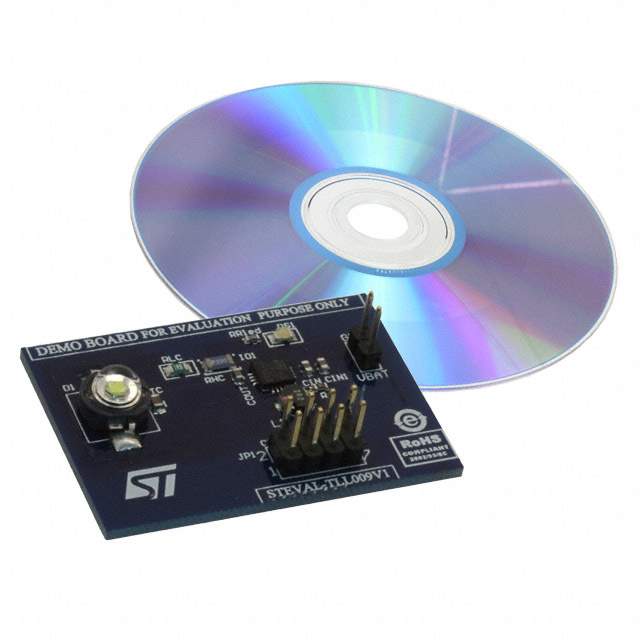

STEVAL-TLL009V1 - STMicroelectronics LED Driver Evaluation Board

The STEVAL-TLL009V1 is a sophisticated LED driver evaluation board from STMicroelectronics designed to showcase the capabilities of ST's LED control technology. This board is an ideal solution for developers and engineers looking to evaluate and prototype applications such as LED lighting systems, backlighting units, and other solutions requiring precise and efficient LED control.

Key Features

  • Integrated STP16CPC26 LED driver IC for efficient power management and smooth dimming capabilities.
  • Capability to drive up to 16 LED channels with constant current outputs, ensuring uniform brightness and color consistency.
  • Adjustable output current through external resistors, providing flexibility in the design and customization of the lighting solution.
  • Support for 3.3V to 5.5V logic input voltage, making it compatible with a wide range of microcontrollers and logic devices.
  • Serial interface for data input, enabling easy integration with other digital control systems.
  • Error detection features such as LED open-circuit and short-circuit detection, enhancing the reliability and safety of the system.

Applications

The STEVAL-TLL009V1 is versatile and can be used in various applications that require high-quality LED driving capabilities. These include:

  • General LED lighting systems
  • Architectural lighting
  • Signage and display backlighting
  • Emergency lighting
  • Decorative and entertainment lighting

Design Advantages

With the STEVAL-TLL009V1, designers benefit from the ease of implementation and the advanced features of the STP16CPC26 LED driver. The evaluation board's robust design allows for immediate testing and prototyping, speeding up the development process. The onboard error detection and management features ensure that the final applications are not only efficient but also safe and reliable for end-users.

Whether you're developing a new LED lighting product or upgrading an existing design, the STEVAL-TLL009V1 offers a comprehensive platform to build upon, backed by STMicroelectronics' reputation for quality and performance in the semiconductor industry.
