Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Supplied Contents Board(s)
Utilized IC / Part STLUX385A
Other Names 497-14697,-1138-STEVAL-ILL068V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283850-STEVAL-ILL068V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL068V1 CAD Model

Description

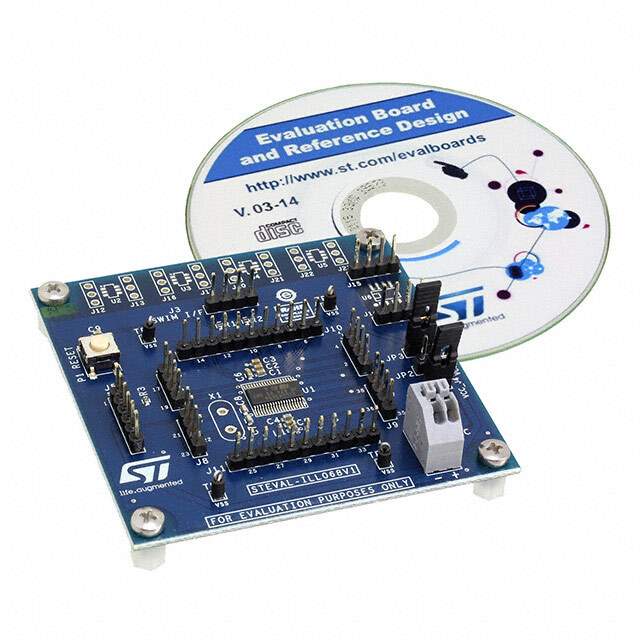

STEVAL-ILL068V1 LED Array Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL068V1 is an advanced evaluation board from STMicroelectronics, specifically designed for driving LED arrays. This product is an ideal solution for developers and engineers looking to explore the capabilities and features of ST's LED driving technology for lighting applications including architectural lighting, signage, and LED strips.

At the heart of the STEVAL-ILL068V1 is ST's cutting-edge LED driver IC, which provides precise current control, enabling consistent brightness and color in LED arrays. The board supports a wide input voltage range, making it versatile for use in various power supply scenarios. Additionally, the evaluation board includes features such as dimming control and thermal protection, which are essential for maintaining the longevity and reliability of LED applications.

The evaluation board is equipped with a user-friendly interface that allows for easy connection to external control units. This interface can be used to adjust various parameters such as brightness levels and to switch between different operating modes. The STEVAL-ILL068V1 also comes with several diagnostic features that help in monitoring the status of the LED array and quickly identifying any issues that may arise during operation.

Designed with efficiency in mind, the STEVAL-ILL068V1 minimizes power loss and ensures optimal thermal management. This not only contributes to energy savings but also reduces the environmental impact of LED lighting solutions. The compact form factor of the board allows for easy integration into existing lighting systems or for use in prototype development.

For developers looking to customize their LED driving solutions, STMicroelectronics provides comprehensive documentation and software support for the STEVAL-ILL068V1. This includes detailed datasheets, application notes, and design guides that assist in the rapid development and deployment of LED lighting applications.

In summary, the STEVAL-ILL068V1 evaluation board from STMicroelectronics is a robust and versatile platform for those looking to advance their LED lighting projects. With its high-performance LED driver IC, extensive feature set, and strong support resources, it stands as an essential tool for professionals in the lighting industry.
