Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 400mA
Outputs and Type 1, Isolated
Voltage - Output 5.3V ~ 10.2V
Voltage - Input 2.5V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part STCF05
Other Names STEVALTLL007V1,1805-STEVAL-TLL007V1,497-10174,-497-10174
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283868-STEVAL-TLL007V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-TLL007V1 CAD Model

Description

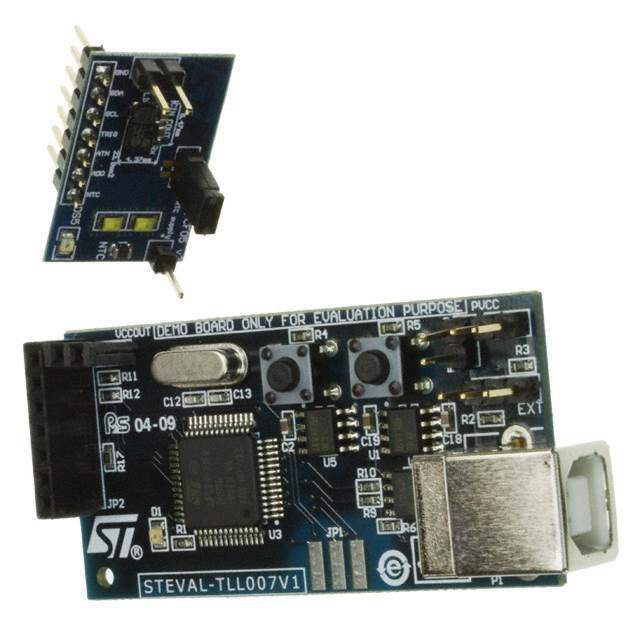

The STEVAL-TLL007V1 from STMicroelectronics is a sophisticated evaluation board designed for driving LED arrays with precision and efficiency. This product is a testament to STMicroelectronics' commitment to innovation in the field of lighting solutions. It is specifically tailored for applications that require high-brightness LED operation, such as industrial lighting, street lighting, and architectural lighting.

At the heart of the STEVAL-TLL007V1 is the advanced LED6001 chip, a step-down monolithic power source with a wide input voltage range that ensures reliability across various power supplies. The LED6001 integrates a 60V power MOSFET that enables high-efficiency power conversion, which is crucial for maintaining the longevity of LEDs by minimizing heat generation.

The evaluation board supports a wide input voltage range from 8V to 48V, making it highly versatile for different LED driving applications. It also features an adjustable output current up to 1.5A, which can be set through an external resistor. This flexibility allows designers to fine-tune the performance of their LED array to match specific lighting requirements.

Moreover, the STEVAL-TLL007V1 incorporates several protection features to ensure the safety and durability of the application. These include overvoltage protection (OVP), overcurrent protection (OCP), and thermal shutdown (TSD). The thermal shutdown is particularly critical in preventing damage from overheating, thereby extending the operational lifespan of the LED array.

For ease of use, the evaluation board comes with an intuitive user interface that includes test points and jumper connectors. This user-friendly approach facilitates quick setup and testing, enabling engineers to rapidly prototype and iterate their designs.

In summary, the STEVAL-TLL007V1 evaluation board is an ideal solution for developers looking to harness STMicroelectronics' LED6001 controller's capabilities. Its robust design, coupled with comprehensive protection features and user-friendly interface, makes it a valuable tool for any LED lighting project.
